Section 5: Troubleshooting
GCL-MJ-MH operators include a self-diagnostic circuit board using troubleshooting LED indicators to signal
the technician of a problem.
TROUBLESHOOTING LED’s
HOIST
INTERLOCK
EXTERNAL
INTERLOCK
+24VDC STB
ENABLE
INDICATION
OFF STB Disabled
ON STB Enabled
ON ON ON Normal Operating Condition
OFF ON ON Hoist Interlock Switch Open:
• Hoist release requires reset
• Hoist interlock connector not plugged in
• Hoist interlock defective
OFF OFF ON External Interlock Open
OFF OFF OFF Power Supply Problem:
• Check AC power supply
• Check main power fuse
• Check secondary fuse (2A)
.1"- &'.5"
5,.1 !-/ <B$,-
000-C.0
5)8",9
000-C.0
5)8",9
./&
5,$
./&
5,$
00"2,
+-,'(
00"2,
+-,'(
>D
3)&
*)/+.
!-/
'<
-
STB
ENAB
+ 24
VAC
EXT
INTLK
HOIST
INTLK

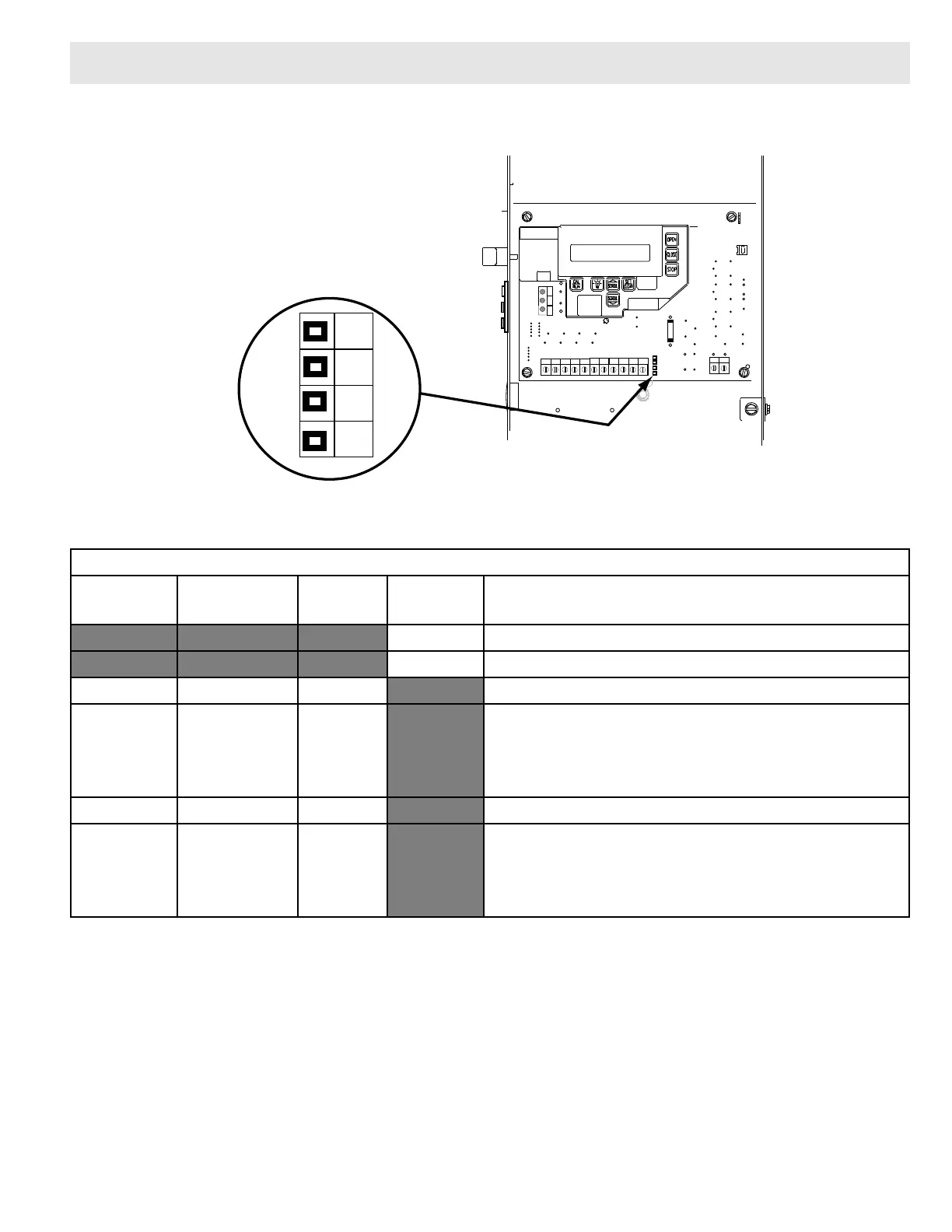

TROUBLESHOOTING
LEDs
STB
ENAB
+ 24
VDC
EXT
INTLK
HOIST
INTLK
DETAIL
To Next Page
