Sec-3.8
Section 3: Wiring
SWITCH (N.C.) P/N 110325.0001
For Rolling Steel Door

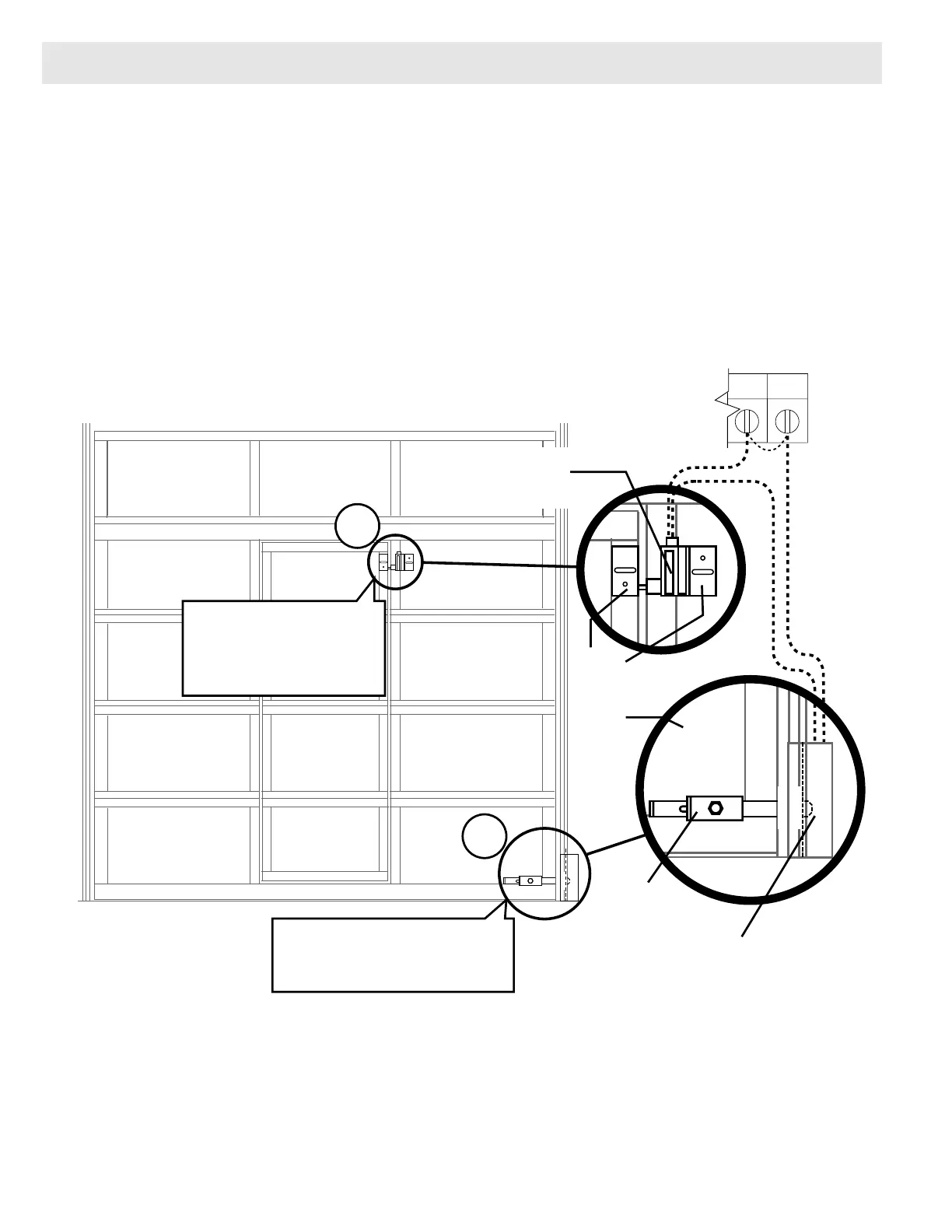

Interlock Switches:
Optional external interlock switches are required with some doors to prevent the door from operating under
certain conditions including the following:
• If the door is equipped with a functioning door lock, an interlock switch (A) must be installed to
prevent electric operation when the lock is engaged.
• If the door is equipped with a pedestrian pass-through door, an interlock switch (B) must be installed at
the pass-through door in order to prevent electrical operation when the pass-through door is open.
• If the door is equipped with a dock leveler the interlock circuit may be connected to the dock leveler to
prevent motor operation when the leveler is not in the down position.
CONTROL SIGNAL TERMINAL STRIP
EXT
INTLK
EXT
INTLK
* REMOVE
JUMPER
WHEN
INSTALLING
EXTERNAL
INTERLOCK
*
SWITCH
075412-0000
(N.O.)
ANGLE
405964-0000
STANDARD
SLIDELOCK
TRACK
SWITCH (N.C.) P/N 110324.0001
For Sectional Door
A
B
Pass door interlock:
Should be open when
door is open.
Closed when door
is closed.
Side lock interlock:
Should be open when door
is locked. Closed when door
is unlocked.
NOTE: If external interlock is used, the jumper wire between the
EXT INTLK terminals MUST be removed.
