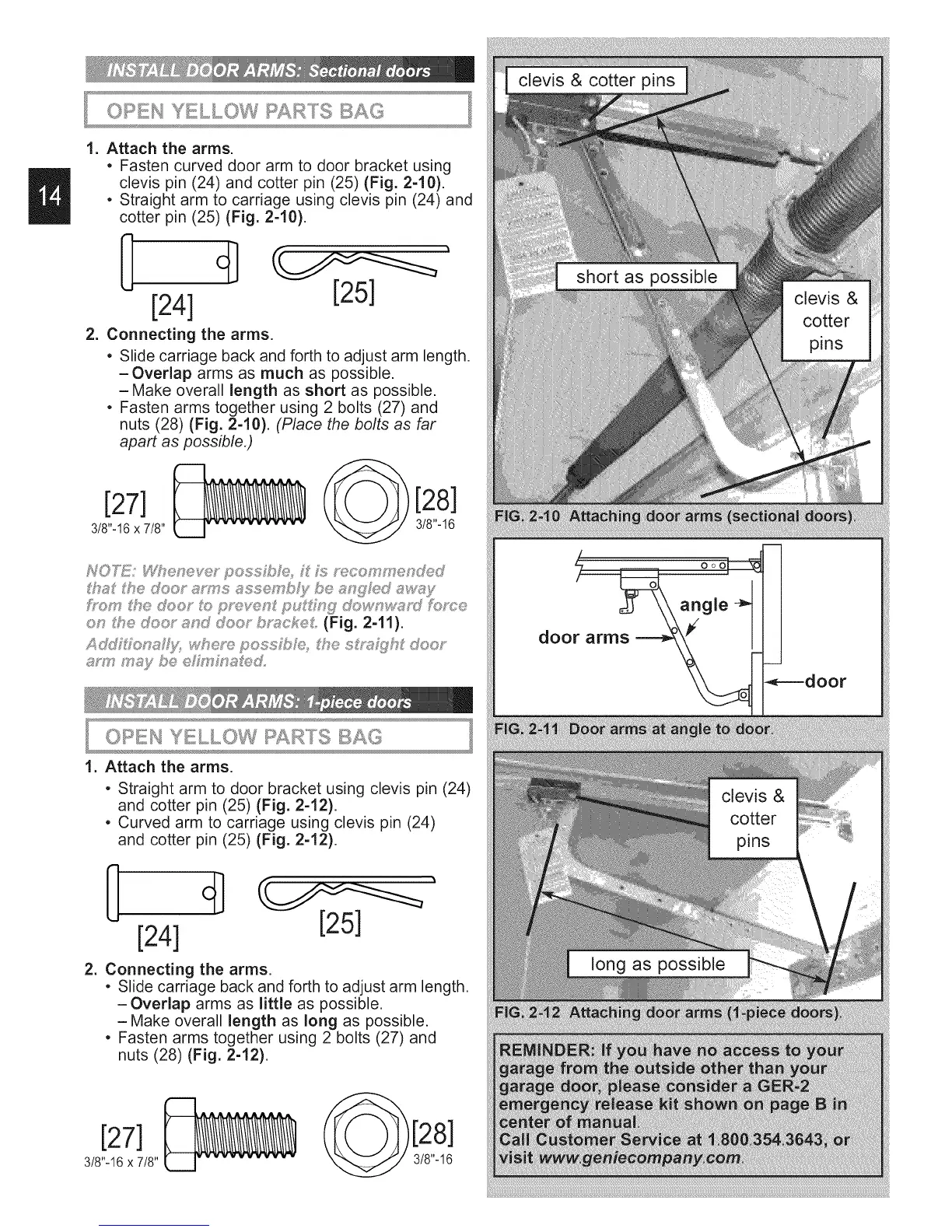

Genie PCG700ML - INSTALL DOOR ARMS; Attaching and Connecting Arms (Sectional Doors); Attaching and Connecting Arms (1-Piece Doors)

OPEH YELLOW RTS BAG
1. Attach the arms.
• Fasten curved door arm to door bracket using
clevis pin (24) and cotter pin (25) (Fig. 2-10).
• Straight arm to carriage using clevis pin (24) and
cotter pin (25) (Fig. 2-10).
[24] [25]
2. Connecting the arms.
• Slide carriage back and forth to adjust arm length.
-Overlap arms as much as possible.
- Make overall length as short as possible.
• Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-10). (Place the bolts as far
apart as possible,)
[27]
3/8"-16 x 7/8"
1. Attach the arms.
• Straight arm to door bracket using clevis pin (24)
and cotter pin (25) (Fig. 2-12).
• Curved arm to carriage using clevis pin (24)
and cotter pin (25) (Fig. 2-12).
[24] [25]
2. Connecting the arms.
• Slide carriage back and forth to adjust arm length.
-Overlap arms as little as possible.
-Make overall length as long as possible.
• Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-12).
[27]
3/8"-16 x 7/8"
[28]
3/8"-16
