BRAIN 15
ENGLISH
Guide for the installer
Page 14
1. WARNINGS
Before attempting any work on the control unit (connections, maintenance), always turn off power.
Install, upstream of the system, a differential thermal breaker with adequate tripping threshold,
Always separate power cables from control and safety cables (push-button, receiver, photocells, etc.).
To avoid any electrical disturbance, use separate sheaths or a screened cable (with the screen earthed).
2. LAYOUT AND CONNECTIONS

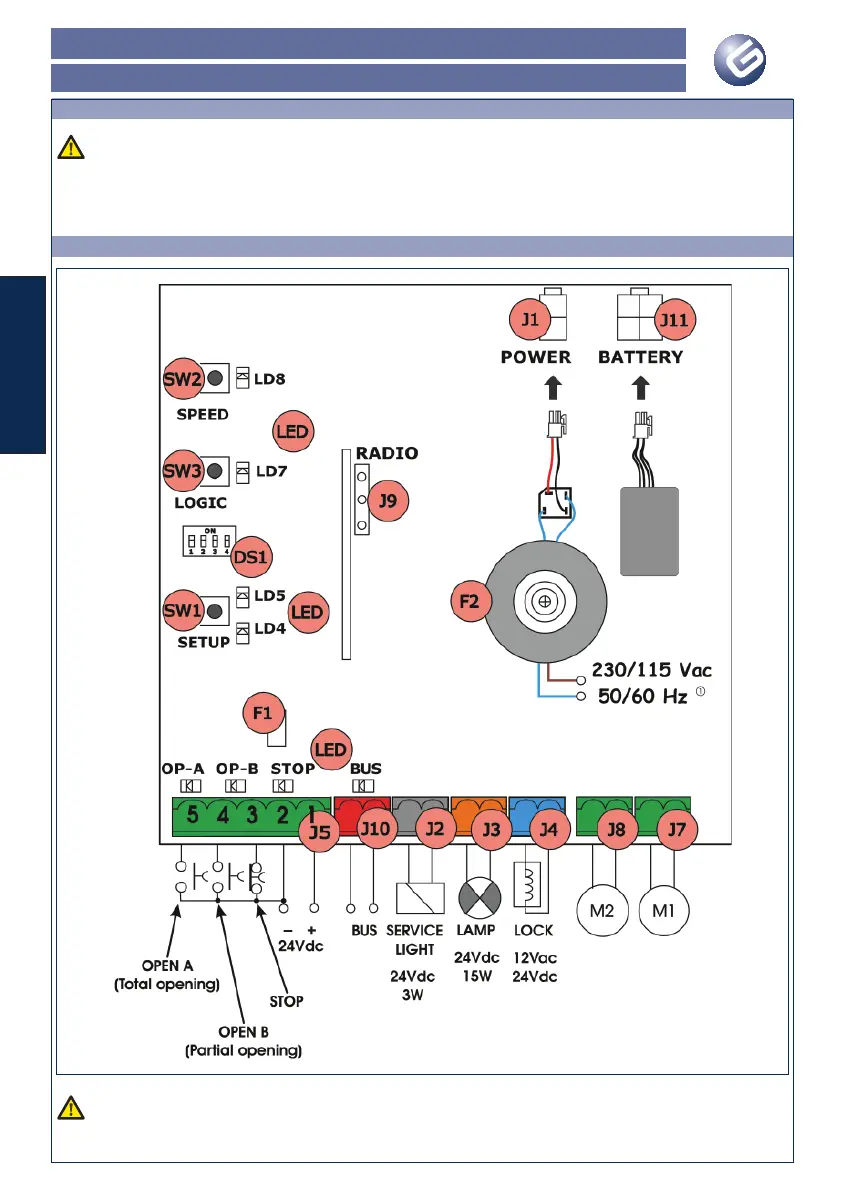

Fig. 1
î The power supply is related to the BRAIN 15 purchased version.
MOTOR CABLES AT LEAST 2.5 mm
