These instructions apply to the following model:
STEP
The STEP automated system automates residential sliding gates
with leaves of up to 5 m in length and 300 kg in weight.
It consists of non-reversing electro-mechanical gearmotor,
powered by a 12 Vdc battery coupled to a control board that
recharges the battery. The board can be programmed and is
used to set the following: function logics, work times (by self-
learning) and pause times, leaf speed, anti-crushing sensitivity,
and partial opening width.
The non-reversing system guarantees the gate will automatically
lock when the motor is not operating. A release system enables
the gate to be moved by hand in case of trouble.
The STEP automated system was designed and built for controlling
vehicle access. Do not use for any other purpose.
2. DIMENSIONS
MODEL STEP
Power supply 12Vdc
Rated absorbed power (W) 48
Max. static torque (Nm) 13.5
Max linear load-free speed (m/min.) 15
Static force (N) 560
Use frequency (cycles/hour) 5
Consecutive cycles on charged battery max. 15
Battery recharge time 10' for each completed cycle
Operating ambient temperature -20 ÷ +55 °C
Operator Weight (Kg) 5,3
Protection class IP 44
Leaf max length (m) 5
Leaf max weight (Kg) 300
Operator overall dimensions LxHxD (mm) see fig. 2

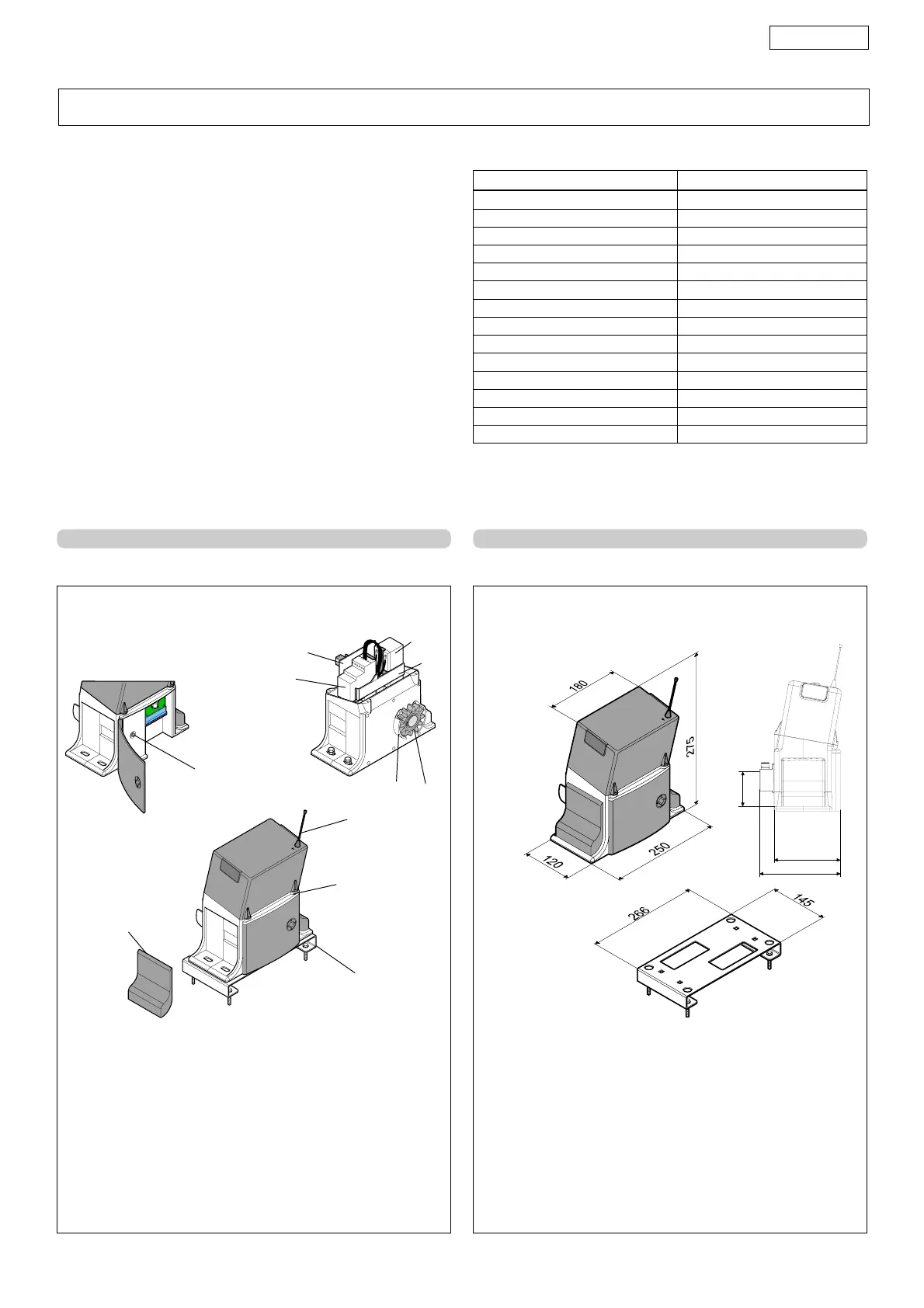

STEP Automated system
TABLE 1 TECHNICAL SPECIFICATIONS OF STEP GEARMOTOR
Fig. 1 Fig. 2
• Dimensions in mm
1. DESCRIPTION AND TECHNICAL SPECIFICATIONS
햲햲
햲햲
햲 Step operator
햳햳
햳햳
햳 Protective side panels
햴햴
햴햴
햴 Pinion
햵햵
햵햵
햵 Manual release
햶햶
햶햶
햶 Foundation plate
햷햷
햷햷
햷 Control board
햸햸
햸햸
햸 Battery and transformer support
햹햹
햹햹
햹 Battery
햺햺
햺햺
햺 Transformer (Optional)
햻햻
햻햻
햻 Hand guards
햽햽
햽햽
햽 Antenna (Optional)
햳
햲
햴
햵
햶
햷
햸
햹
햺
햻
햽
