Genius STEP User Manual

ENGLISH
18
8. ELECTRICAL CONNECTIONS
7. CONTROL BOARD TECHNICAL SPECIFICATIONS
Power supply 12Vac
Batteries Hermetic Pb 12Vdc 1.2Ah - dimensions 96x46x50
Transformer characteristics Primary 230 Vac - Secondary 12 Vac - 16VA
Absorbed power 16 VA
Motor max current 15A
Operating ambient temperature -20° +55°
Protection fuses N° 1 (see fig. 21)
Anti-crushing function Encoder / Current control
Accessories max. load at 24 Vdc 150 mA
Rapid connector max load 50 mA
Function logics Automatic / "Stepped" automatic / Safety device / Semi-automatic
Opening/closing time By self-learning
Pause time Programmable: 5, 10, 20, 30 sec.
Partial opening width 90, 120, 150, 180 cm.
Speed Selectable on 4 levels
Static force adjustment Selectable on 4 levels
Deceleration Electronic
Terminal board inputs Open - Partially Open - Stop - Safety devices at opng. - Safety devices at clsng. - Sensor
Terminal board outputs Motor - Flashing lamp - indicator-light - Accessories 24 Vdc - 12 Vdc power supply
Connectors Minidec cards - RP cards - Battery
Programmable functions Logic - pause time - partial opening width - anti-crushing force - operator speed

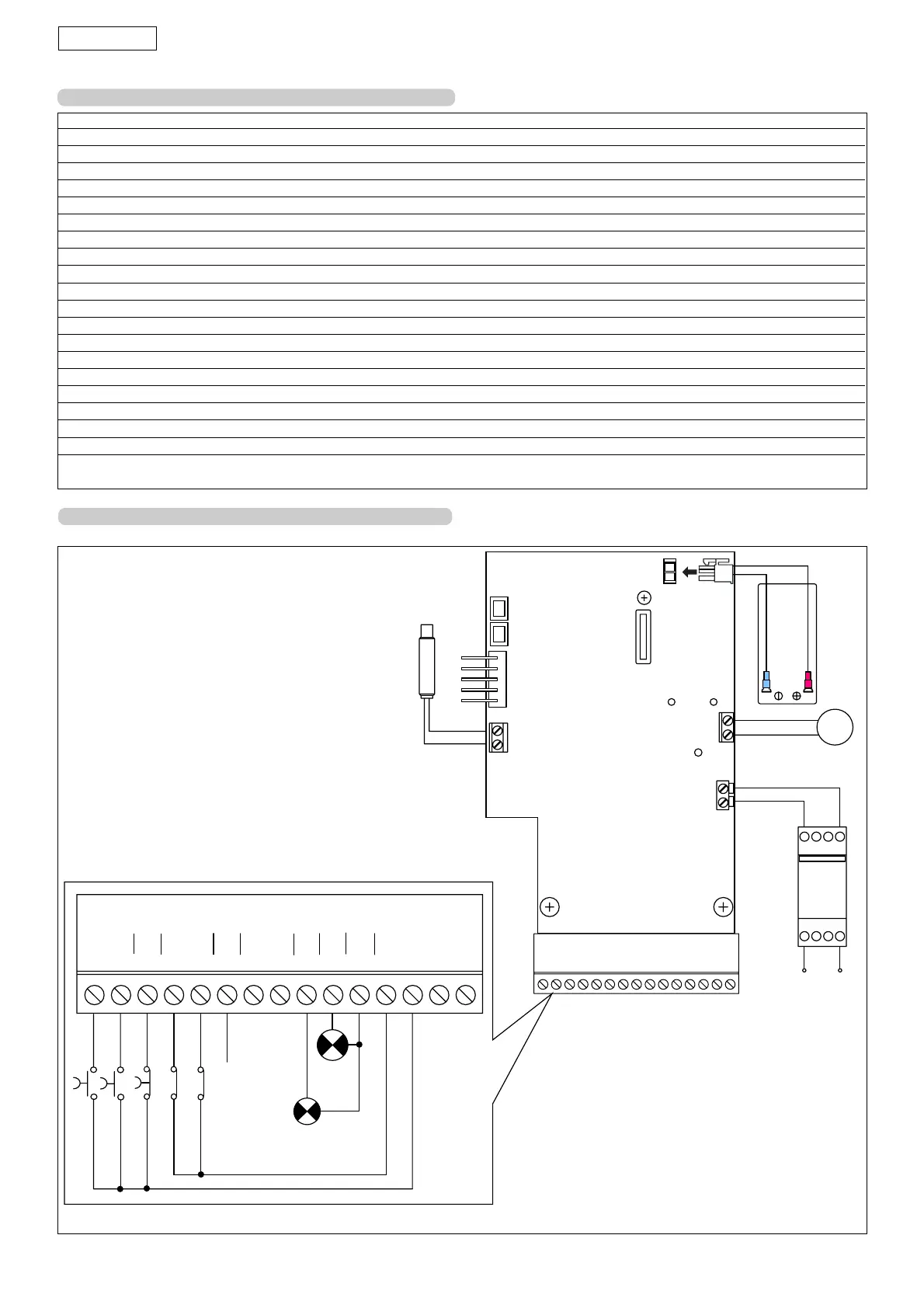

Fig. 22
*
*
Example of connection without photocells
** Not used
**
Sensor
1
15
2
3
4
56
7
8
910
11 12
13
14
OPEN
A
B
STP
CLOP
FSW
+24V
++
W.L.
LAMP
12Vdc
+
---
-
12Vdc
21W
12Vdc
0,5W
M
5
6
7
8
1
2
3
4
230Vac
50 HZ
12 Vac
J1
J2
J3
J4
F1
J10
