09
Mechanical Installation
STEP 1 Installing Rubber Feet
What you need:

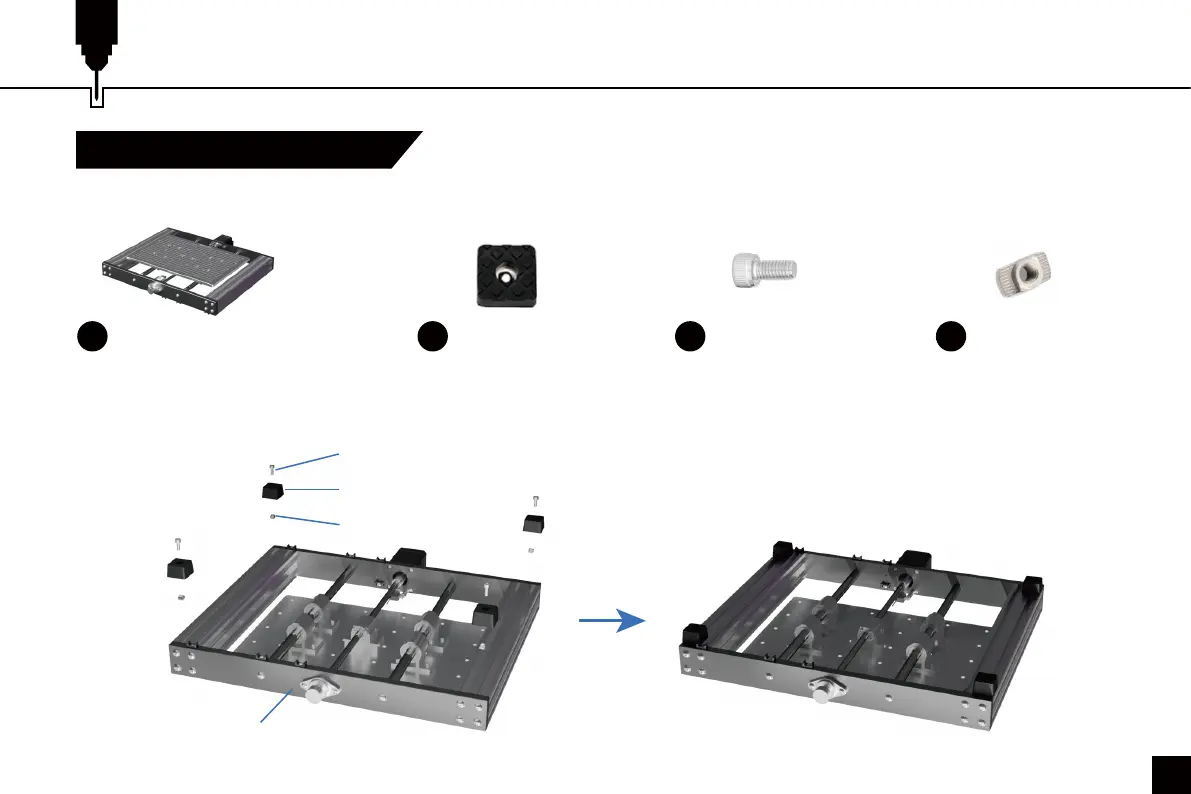

Position the XY axis base assembly upside down on a flat surface as shown below, place the M4 T-slot nuts in the profile slot and
install (4) rubber feet onto each corner with M4×10 socket head cap screws.
01 XY Axis Base Assembly 05 (4) Rubber Feet
22
(4) M4×10 Socket
Head Cap Screw
23 (4) M4 T-slot Nut
M4 T-slot Nut
Rubber Feet
XY Axis Base Assembly
M4×10 Socket Head Cap Screw
To Next Page
