Mechanical Installation
STEP 2 Installing X-axis Assembly
What you need:

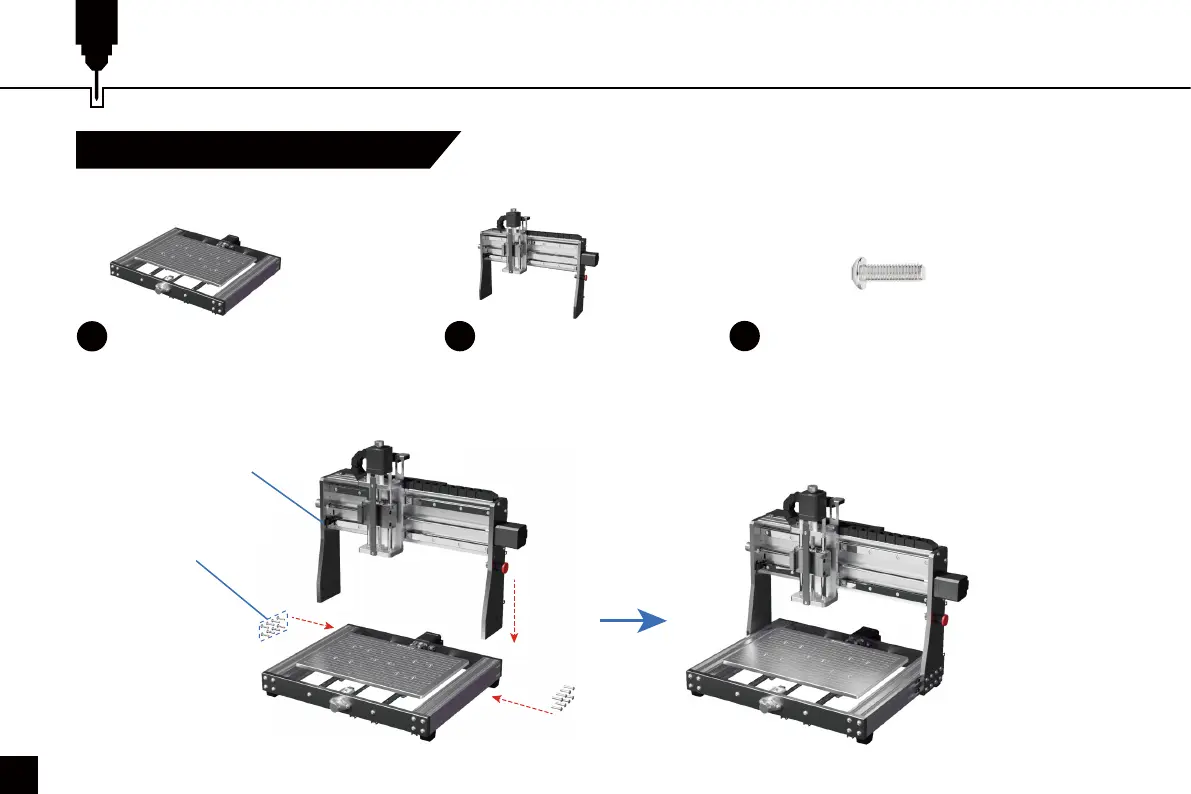

Mount the X-axis assembly on the XY axis base assembly frame, ensure the X-Axis assembly is positioned all the way to the rear
of the XY Base frame as shown below. Complete the installation by securing the X-Axis to the frame with (8) M5×25 screws on
each side.
02 X-axis Assembly
01 XY Axis Base Assembly
24
(16) M5×25 Rounded Hex Screw
X-axis Assembly
1
2
2
(8) M5×25
Rounded Hex Screw
