STEP 11: Install Aluminum Platforms
41

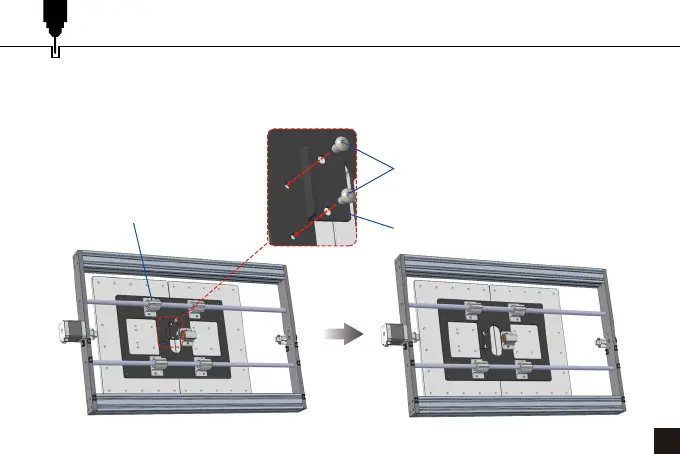

6. Insert (2) M5×5 screws through the holes in the limit switch trigger sheet metal parts. Line them up
with the corresponding threaded holes in the sheet metal connectors. Screw them into the threaded
holes and tighten them securely.
Sheet Metal Connector
Y-axis Limit Switch
Triggered Sheet Metal
(2) M5×5 Round Head Screw
