STEP 11: Install Aluminum Platforms
40

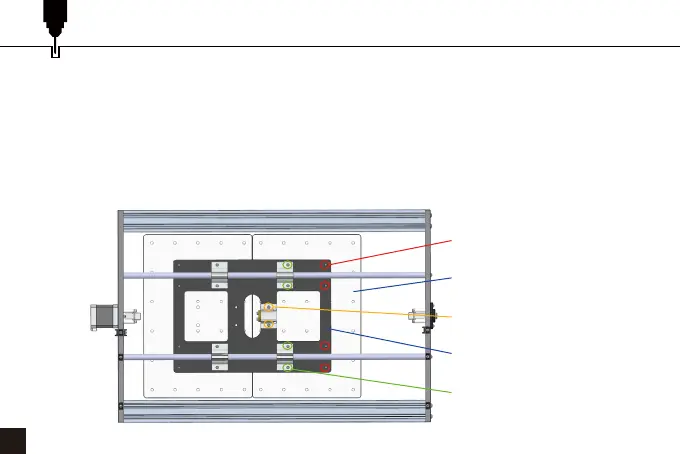

3. Insert the (4) M5×14 screws through the holes in the guide shaft holders. Line them up with the
corresponding holes in the new aluminum platform and sheet metal connector. Screw them in and
tighten.
4. Insert the (2) M5×20 screws through the holes in the rod holder. Line them up with the corresponding
holes in the new aluminum platform and sheet metal connector. Screw them in and tighten.
5. Insert (4) M5×8 screws through the corresponding holes in the sheet metal connector. Screw them
into the threaded holes on the new aluminum platform and tighten them securely.
(4) M5×8 Flat Head Screw
New Aluminum Platform
(2) M5×20 Flat Head Screw
Sheet Metal Connector
(4) M5×14 Flat Head Screw
To Next Page
