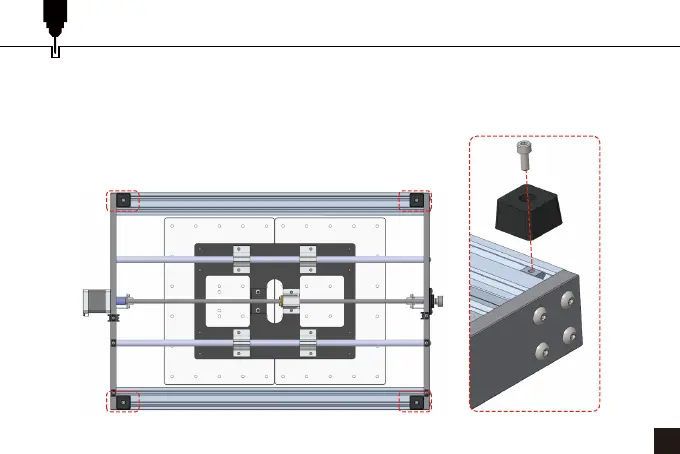

STEP 14: Install the Rubber Foot
47
1. Fit the T-slot nuts into the profile slots.
2. Align the rubber foot screw holes with the T-slot nut threaded holes. Screw the rubber foot fixing screws
through the rubber foot into the T-slot nut and tighten.
