Zenith16/40 GNSS Series - 13 -
Installation Guide © 2019 GeoMax AG, Widnau Switzerland

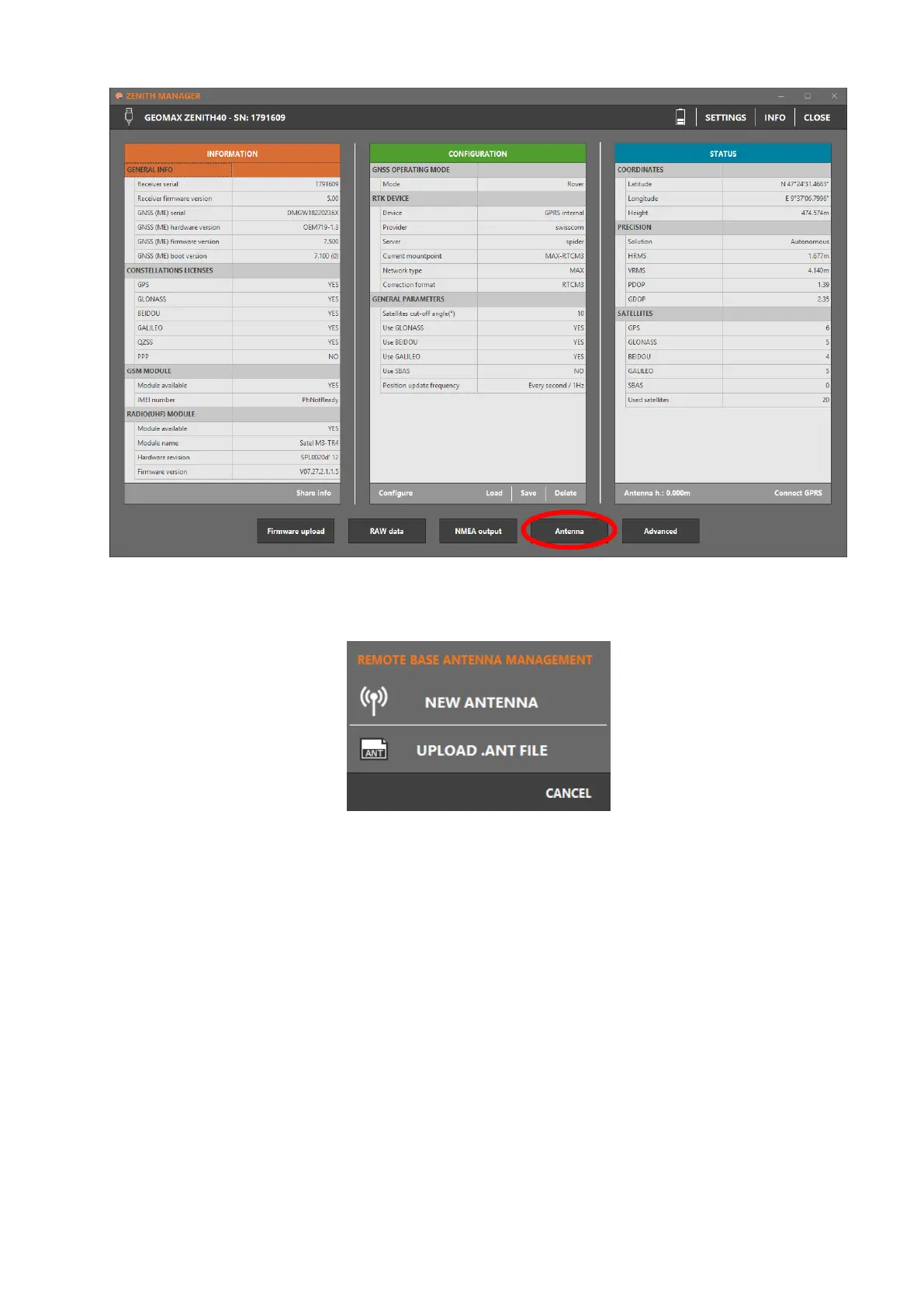

To add new antennas, there are two options:
- By uploading an .ant* file located in the PC (can be created with Infinity).
- By adding manually the following values. Enter the IGS name of the base antenna
and the vertical, east and north phase centre offset for L1 and L2 in meters (m).
See the next example to know how to add a new antenna manually. The antenna used is a
GS16 from Leica:
- IGS name for GS16: LEIGS16
- L1 vertical PCO value in meters: 0.0887
- L1 east PCO value in meters: -0.0002
- L1 north PCO value in meters: -0.0002
- L2 vertical PCO value in meters: 0.0887
- L2 east PCO value in meters: 0
