GeoVision GV-AS2120 User Manual

ix
Note: Make sure the plastic insulation film under the battery is removed when using GV-
AS100 / 2110 / 2120 / 4110 / 8110 for the first time. The low battery messages and icons will
appear if the plastic film is not removed.
Built-in Battery (GV-AS1010 / 110 / 1110 / 120 / 210 / 410 / 810 & GV-EV48)
When the controller runs out of battery, the local time on the controller will be reverted back

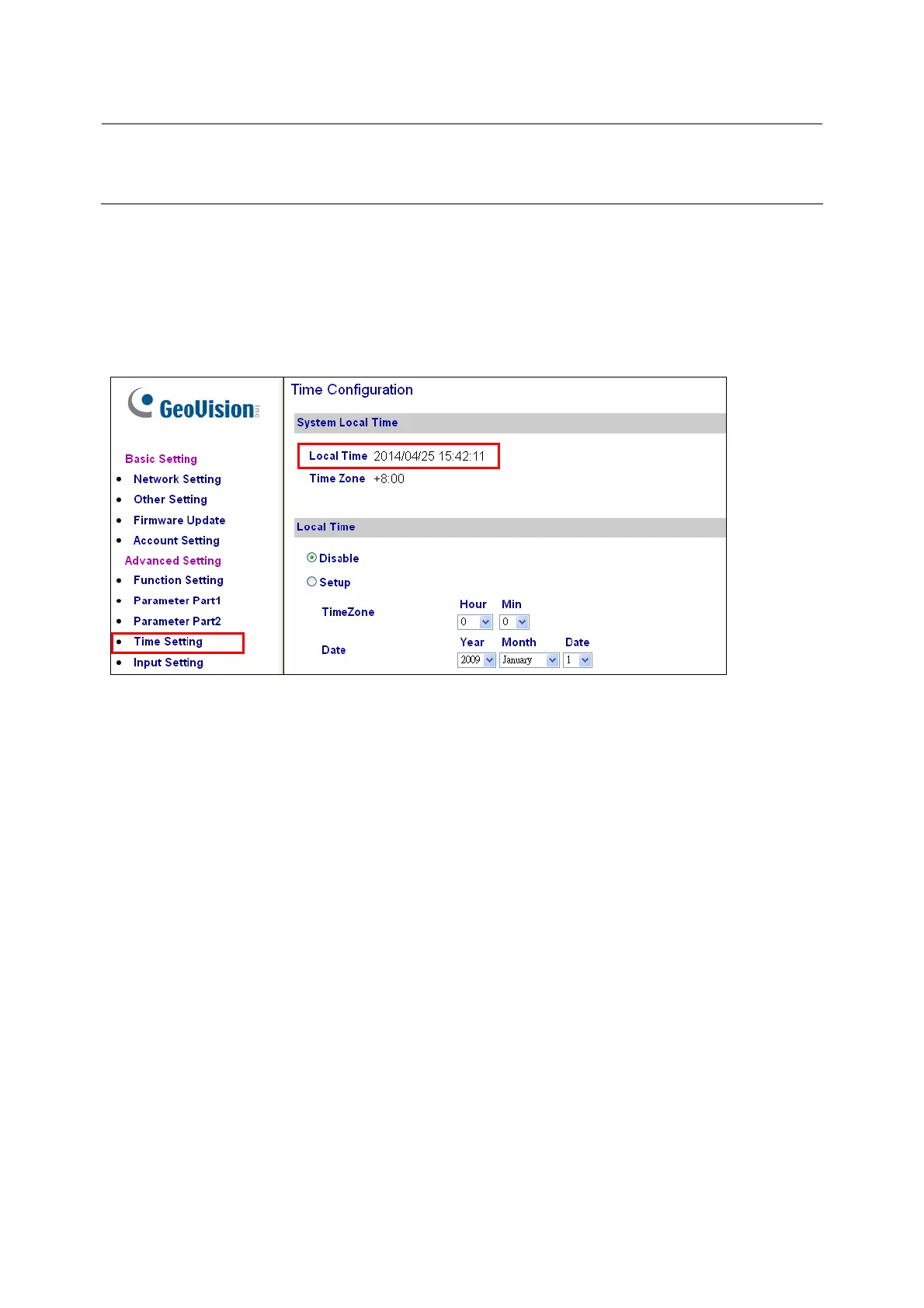

to 1999/12/31. The controller time can be found on the Web interface of the controller on the
Time Configuration page and in the Access Monitor / Alarm Monitor / Event Monitor of GV-
ASManager.
When you see the controller year shown as 1999 or 2000, disconnect the controller from
power and reconnect it to power. If the year is still shown as 1999 or 2000, the controller
battery needs to be replaced. When this occurs, connect the controller to a backup battery
and maintain connection with GV-ASManager at all times. When connected to GV-
ASManager, the controller’s time will be synchronized with GV-ASManager’s time.

GeoVision GV-AS2120 Specifications

General

Type	Intelligent access control reader
Certification	CE, FCC
Number of users	100000 user(s)
Access code reader	-
Fingerprint reader	Yes
Authentication type	Access chip/card
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
DC current (max)	3 A
DC voltage range	12 - 30 V
Power consumption	200 mA
RS-485 ports	1

Weight and Dimensions

Depth	46.6 mm
Width	210 mm
Height	204 mm
Weight	810 g
