17. Insert the Feed Roll Bar through the hollow core in the Paper
Roll (Figure 16).

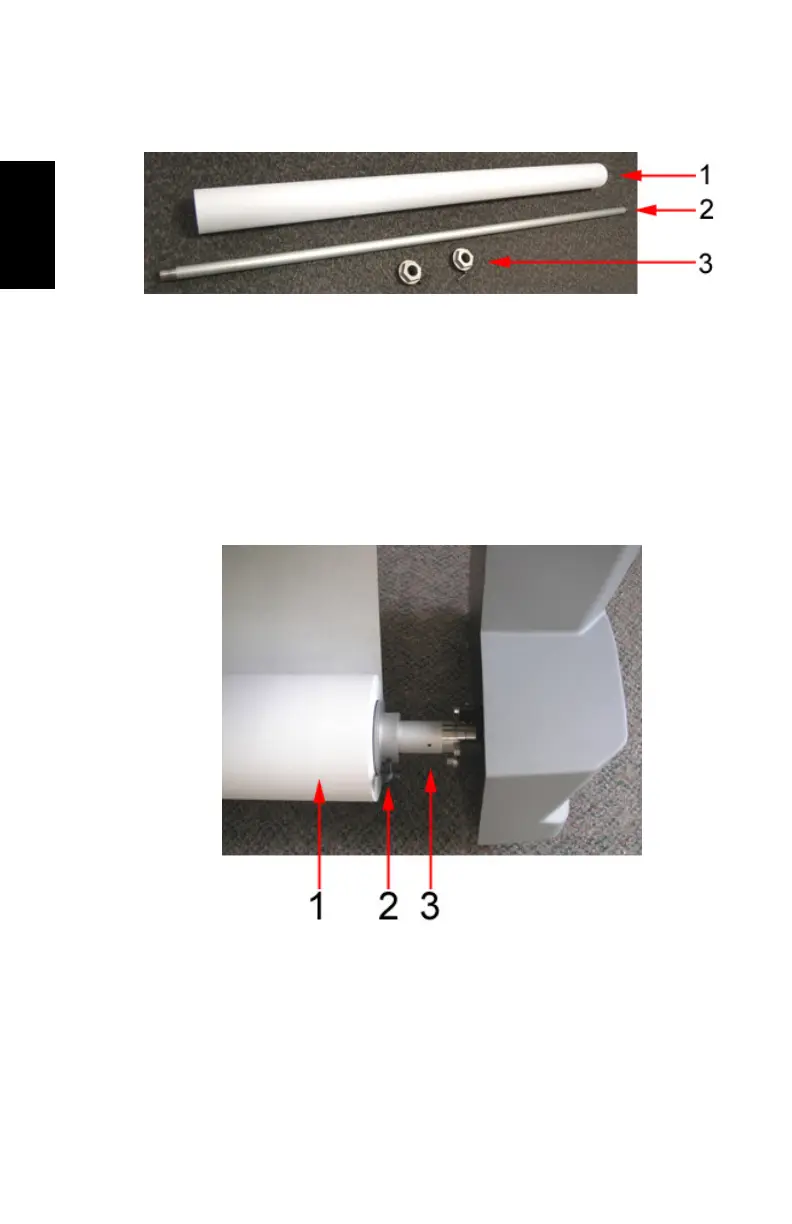

Figure 16. Paper roll and components
Key to Figure
1. Paper Roll
2. Feed Roll Bar
3. Mandrels
18. Place Mandrels on each end of the Feed Roll Bar and use the
attached black levers to tighten next to the Paper Roll (Figure
17).
Figure 17. Paper on Feed Roll Bar with Mandrel
Key to Figure
1. Paper Roll
2. Mandrel
3. Feed Roll Bar
