40
English
Forward/Reverse Alignment Calibration
1. Click the Start F/R Alignment button (Figure 39) to run the
Forward/Reverse Alignment Calibration.
NOTE: The plotter will begin printing.
2. Check the plot for the line and corresponding numeric value
that represents the best match of the two printed lines.
3. Add or subtract the value from step 2 from 7.
4. Enter the numeric value from step 3 in the Y Gap box.
5. Click Apply.
6. Repeat the calibration if required.

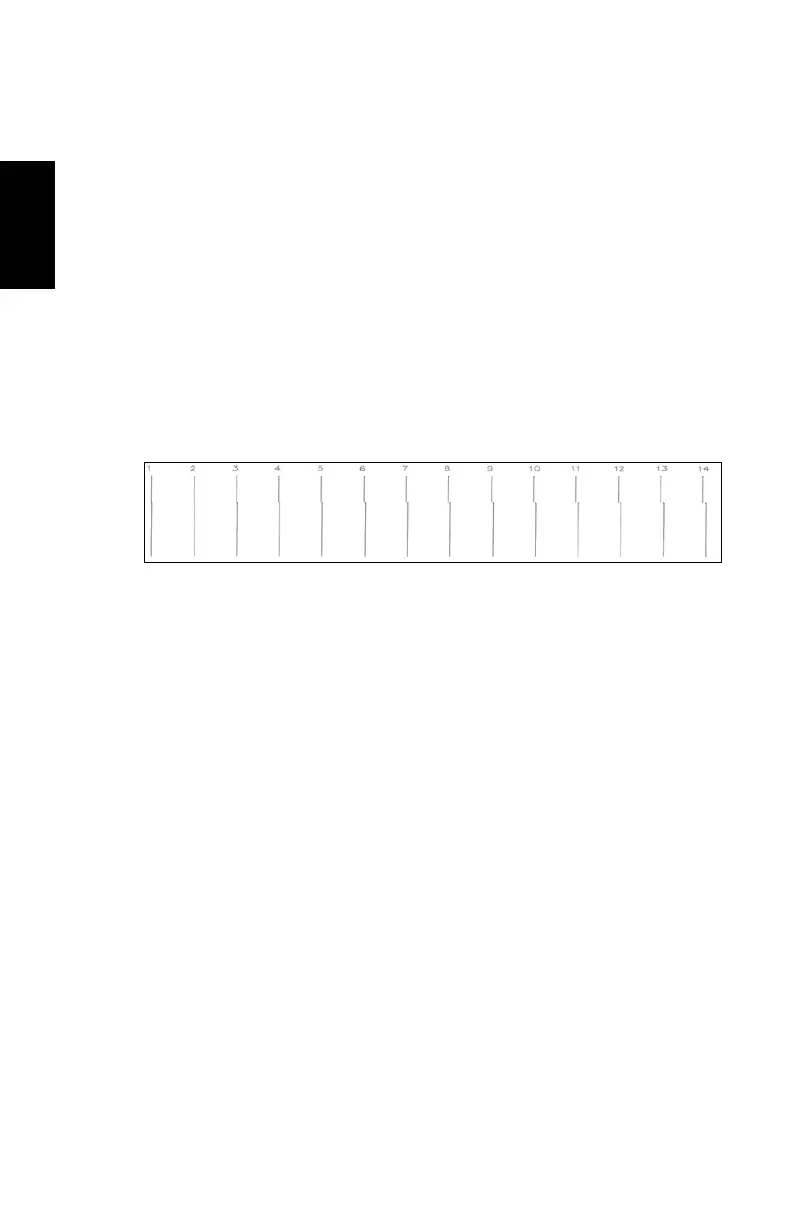

Figure 43. Forward/Reverse Alignment Calibration
