RENTAL SERIES
ELECTRICAL GENERATOR

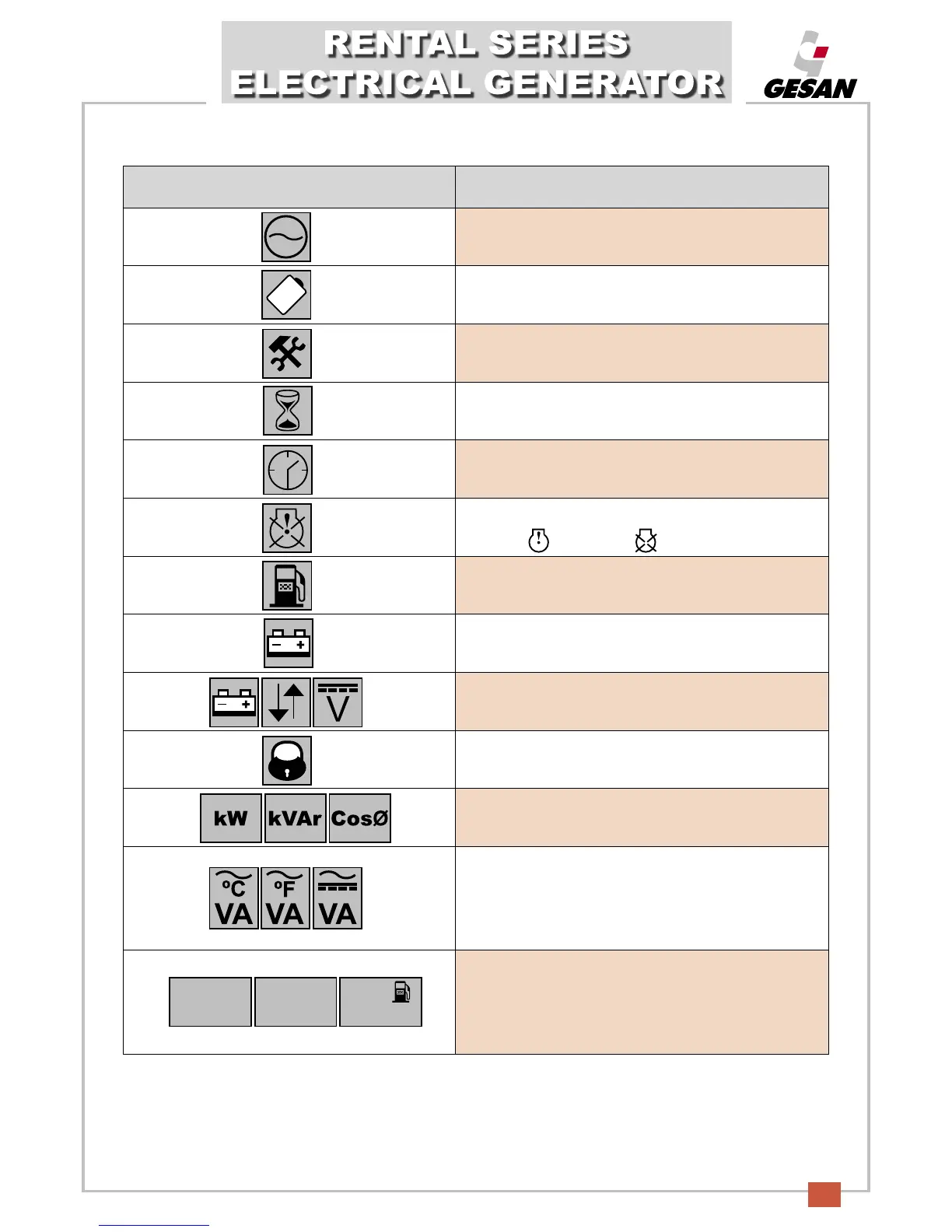

ICON DESCRIPTION
I
ndicates that the screen display information refers to the
electrical generator.
Indicates that the event log reading is being accessed
(Flashing).
Indicates that the programming mode is being accessed.
Indicates that the electrical generator is idle.
I
ndicates that the electrical generator’s system date and
time is being shown.
T
his icon indicates a stoppage or alarm;
Warning = , Stoppage =
Indicates the percentage of fuel remaining in the generator’s
tank.
Indication related to the battery.
Indicate battery level outside established limits.
Indicates keypad is locked.
kW and kVAr indicate units of current power.
CosØ: Indicates power factor.
º C: Measurement given in degrees celsius.
º F: Measurement given in degrees Fahrenheit.
~ : Measurement related to alternating current.
V : Measurement of voltage.
A : Measurement of Intensity (amperes).
....: Indicates direct current.
If Lx-Lx is displayed:
Indicates measurement of phase-phase voltage.
If Lx-N is displayed:
Indicates measurement of phase-neutral voltage.
Bar, rpm, PSI, Hz, kPa: indicate measurement units for the
corresponding parameter.
The lock icon indicates keypad is locked.
Bar Rpm
L1-L2N
psi Hz
L2-L3N
Kpa
L3-L1N
