5. TROUBLE SHOOTING
5.1 GENERAL ADJUSTMENT
1) Turntable belt adjust

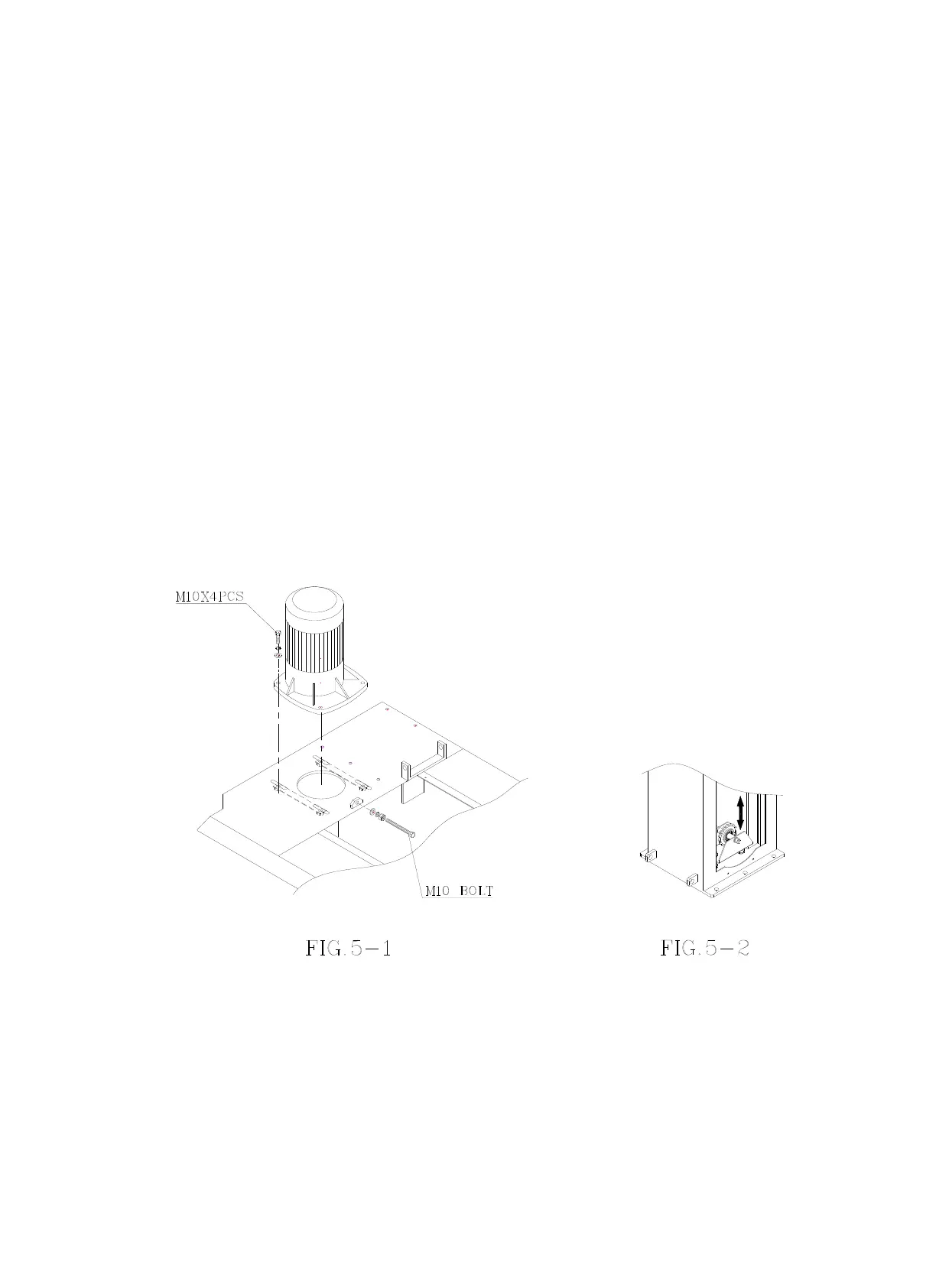

Please see the illustration 5-1, and then loosen the motor seat M10 screw 4 pcs.
Turn the (M10) on the seat until get enough tension. Turn and tight the motor seat
screw 4 pcs again.
2) Elevator unit driving chain adjust:
Adjust the elevator to proper position and take off the cover tower
Adjust the M10 screw (Up and down) to proper tension
