It is important that the connection has the correct overcurrent protection.
The correct fuse rating is stated on the type plate.
The main switch on the front of the machine disconnects the power to all components
connected to the machine that are connected after the main switch of the machine.
Cables for signal exchange may also be connected to the machine. These cables are
connected to terminal strips X04 (dosing monitoring), X06 (signal exchange) and X07
(loader/unloader and AGS). When the cables have been connected, the Plexiglas shield
that provides protection between terminal strip X01 and terminal strips X04-X07 must
be put back in place.
See the technical manual for additional information.
Main switch
Electrical
connection

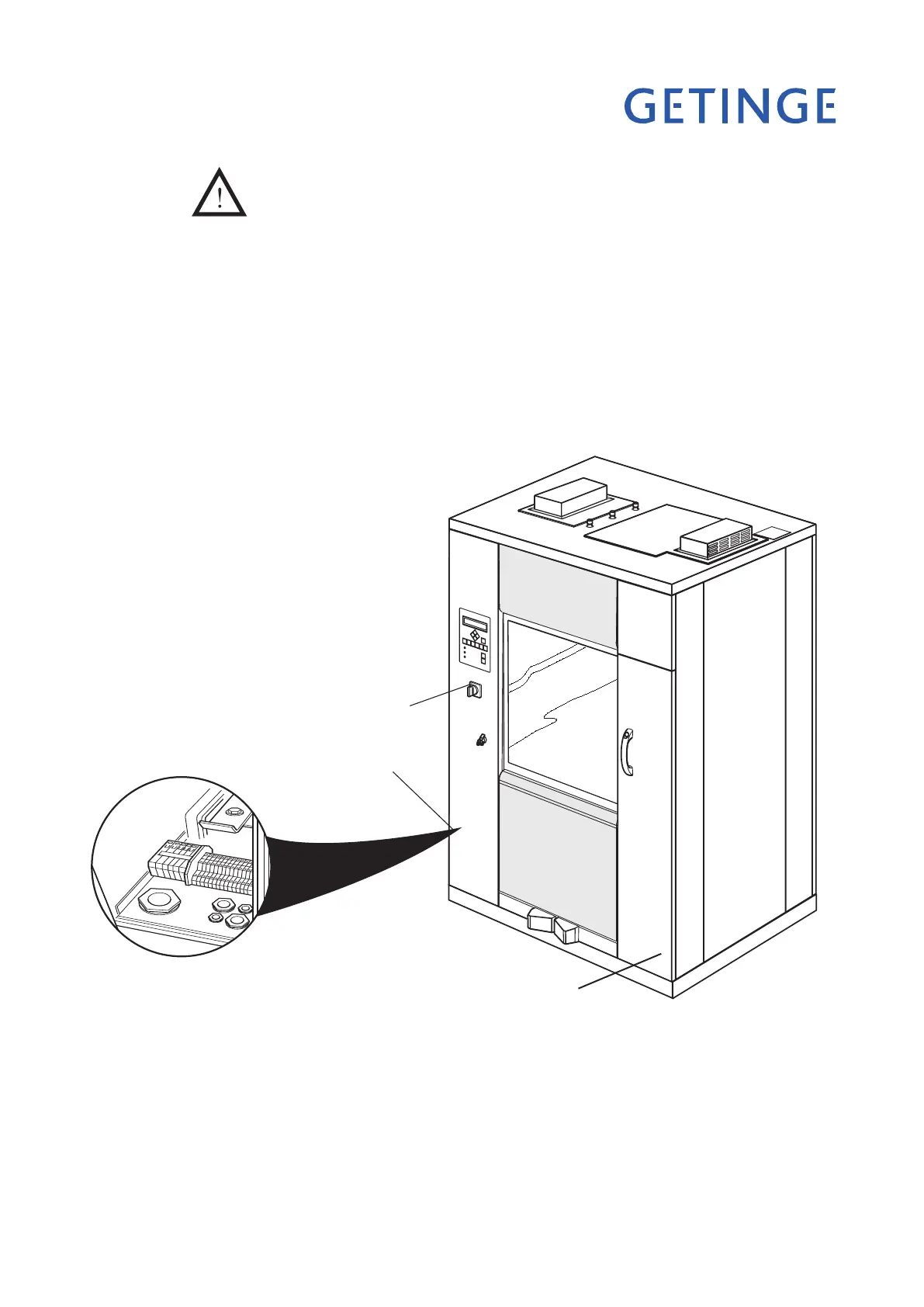

Figure 4 Electrical connection (see alternative connection arrangements)
Type plate
on the inside
J034
V2033
