Getinge 9125 Installation Manual

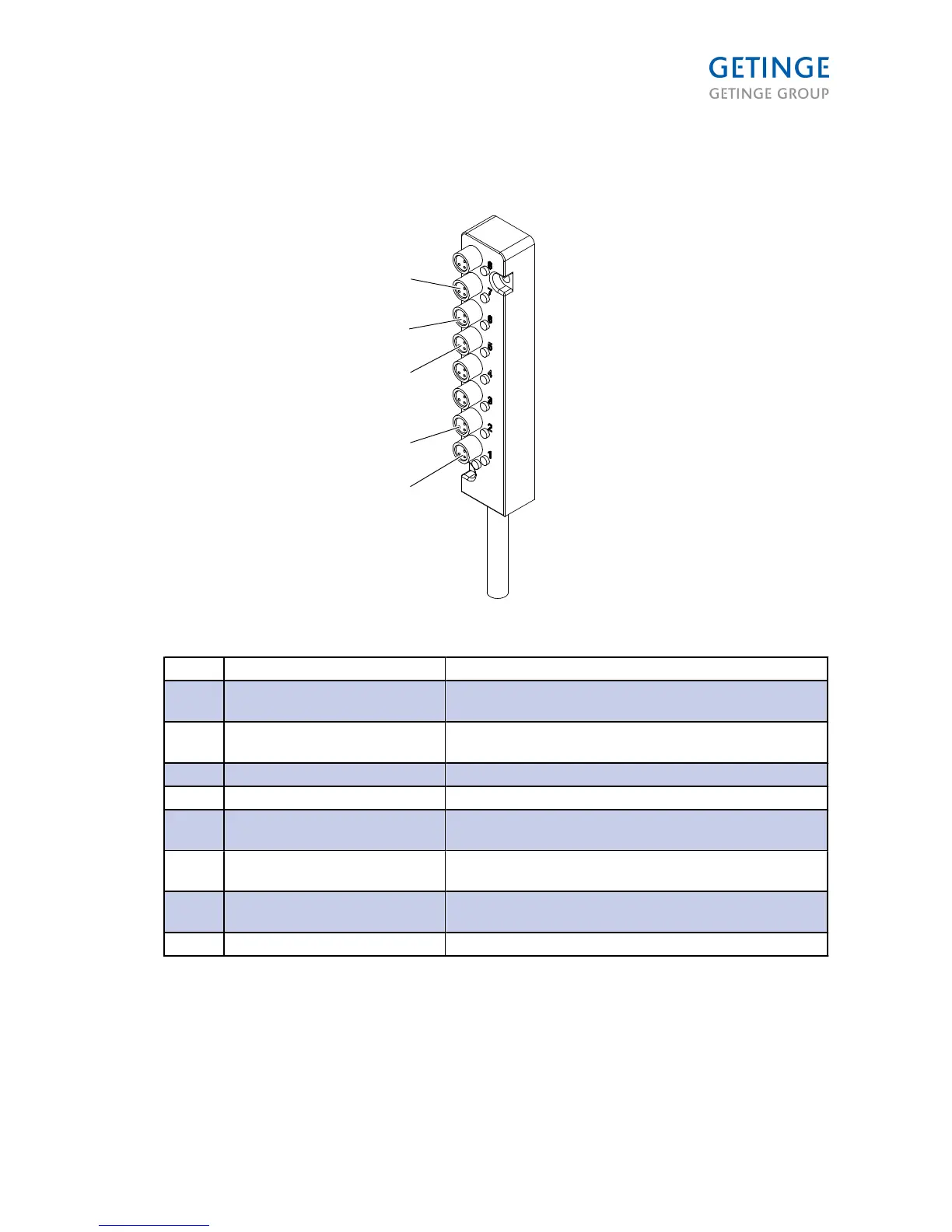

• Connect the cable from the door modules, soiled side (SS) and clean side (CS, option) to the
cable splits. Connect from the SS door equipment to cable split X215 with cables 251...
Connect from the CS door equipment to cable split X220 with cables 261...
000540
-X257 (C.S)
-X267 (S.S)
-X256 (C.S)
-X266 (S.S)
-X255 (C.S)
-X265 (S.S)
-X252 (C.S)
-X262 (S.S)
-X251 (C.S)
-X261 (S.S)
-X220 (C.S)
-X215 (S.S)
Jack
Cable label Destination
1 -X251
-X261
Door SS Unlock 1 Switch S02.1
Door CS Unlock 1 Switch S06.1
2 -X252
-X262
Door SS Unlock 2 Switch S02.2
Door CS Unlock 2 Switch S06.2
3 Not used.
4 Not used.
5 -X255
-X265
Door SS Threshold Switch S11
Door CS Threshold Switch S12
6 -X256
-X266
Door SS Locked 1 Switch S01.1
Door CS Locked 1 Switch S05.1
7 -X257
-X267
Door SS Locked 1 Switch S01.2
Door CS Locked 1 Switch S05.2
8 Not used.
Page 43 of 92
<Doc_INS><Doc_6001341302><Rel.A><Lang_en>
