Adjusting the limit switch
Adjusting the pressure stabilizer

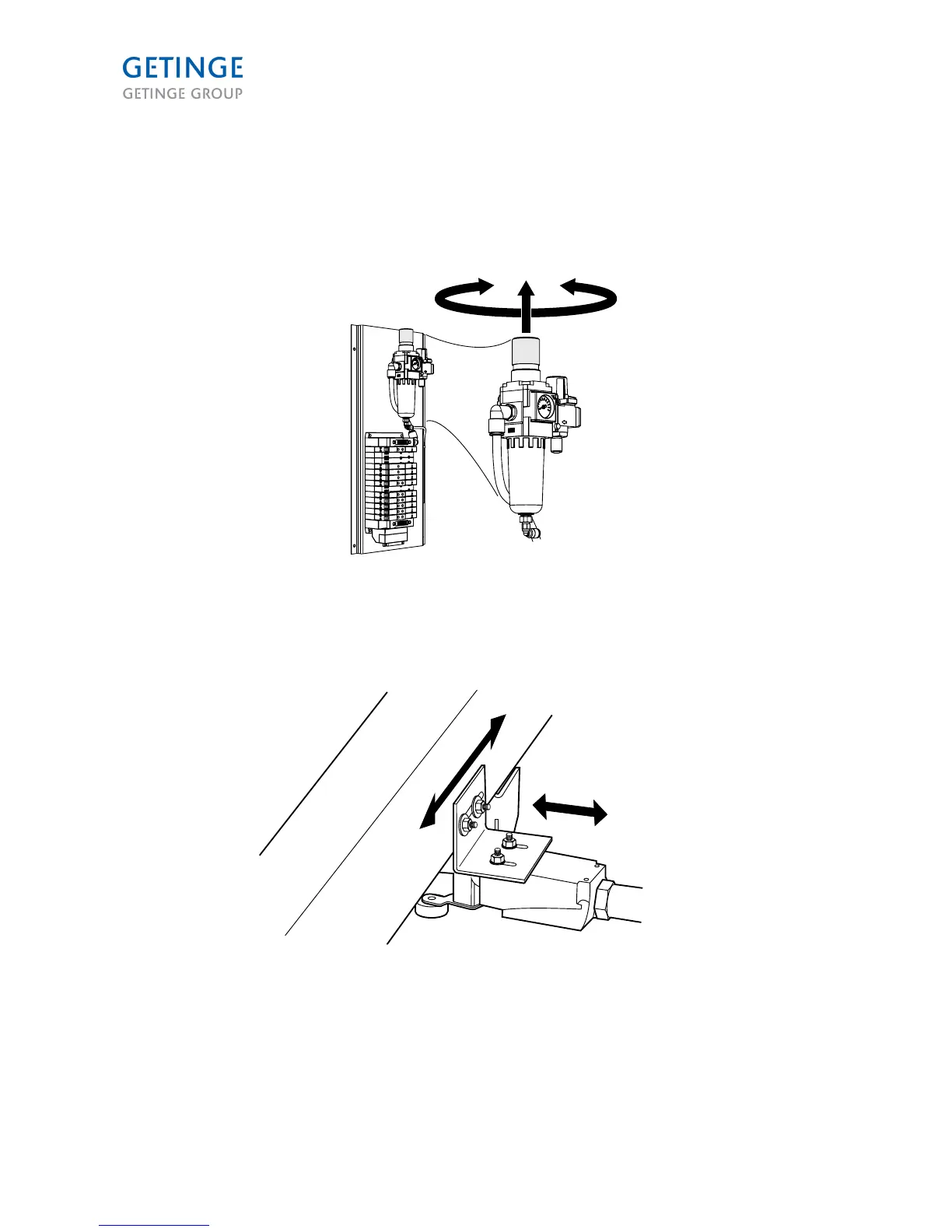

The pressure stabilizer is placed on the electrical cabinet and adjusted by pulling up the control knob and
then turning it. Adjust the stabilizer so the barometer displays 0.5 MPa of pressure.
Open door
Manually open the door enough so the entire door is outside the door opening. Adjust the mechanical
end stop so it is against the door when the door is open all the way. The mechanical end stop consists of
an adjustable angle bracket and an adjustable rubber stopper.
The switch's mounting is adjustable in two directions, which is used to adjust the switch's point of
impact. When adjusting for an open door, make sure that the point of impact for activated/non-activated
switches is distinct and that the breakpoint is not in the switch's outer area.
Page 54 of 92
