• Repeat the following steps (1-4) for modules with a chamber extension.

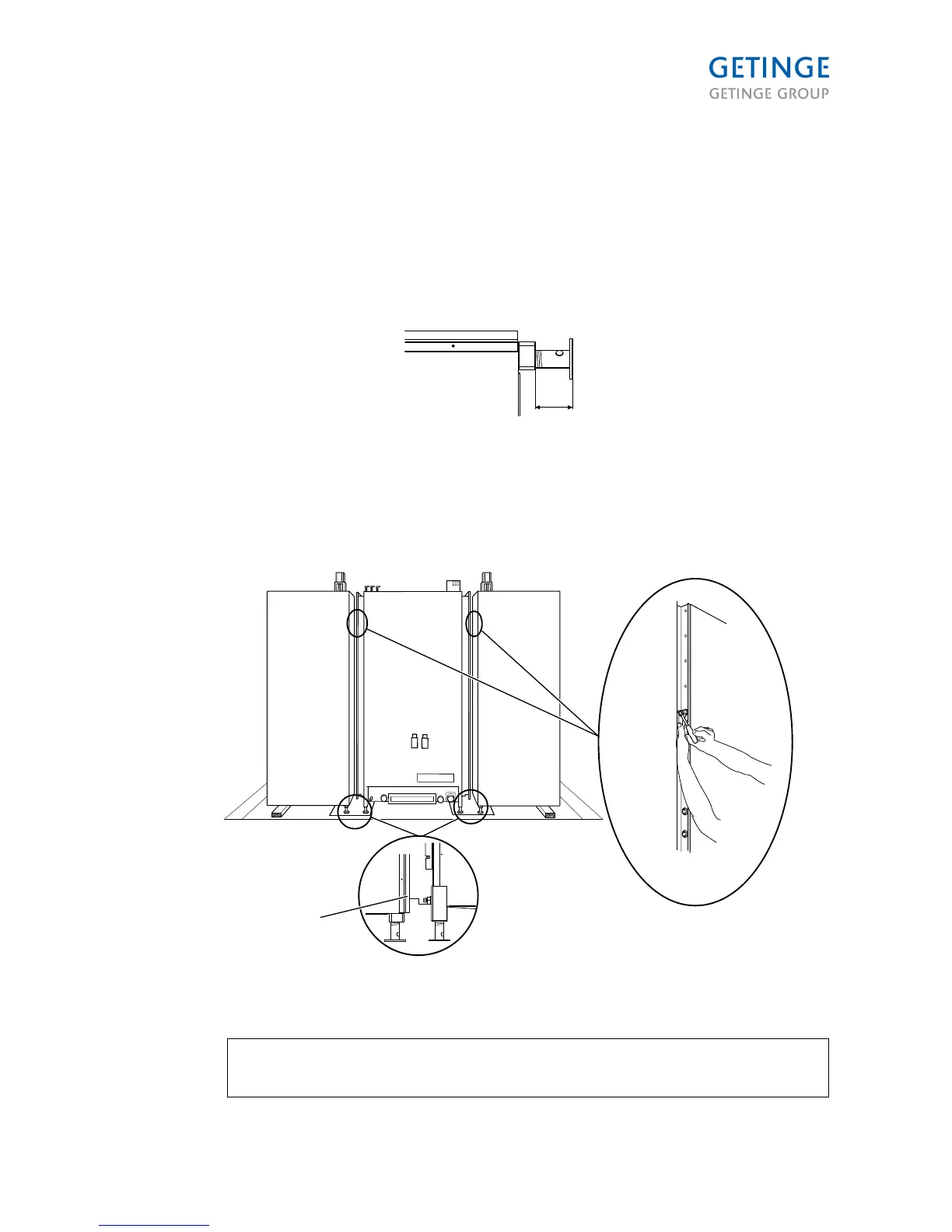

1. Get one of the modules with chamber extension and adjust the feet so that the module is level
with the main module. If the washer-disinfector is to be installed in a pit, it is a good idea to
measure the depth of the pit before adjusting the feet. If the pit's depth is 150 mm, the
adjustable feet must be lengthened approx. 50 mm, as illustrated below. This means that the
extended length of the feet must be 100 mm less than the depth of the pit.
2. Move the extension module against the main module and insert (do not pull out yet) the top
screw on both sides, to attach the module with chamber extension to the main module.
3. Insert the two guide pins on the floor edge of the chamber extension module into the
corresponding holes in the main module, and move the module for chamber extension towards
the main module.
1. Locating pins
Note: Use the silicone seal 732 that comes with the machine. Let the silicone
harden for 12 hours before using the machine.
Page 19 of 92
<Doc_INS><Doc_6001341302><Rel.A><Lang_en>
