Getinge Arjohuntleigh Ninjo FD1600 User Manual

12
 )UHHVWDQGLQJPRGHOZDOOPRXQWHG
Scale drawings apply to the FD1600 and FD1610 models.
3
3
4
12
~460
1320
1270
500
535
580
370
225
450
150
300
75
1035
100
12
280
84,5
002877
55

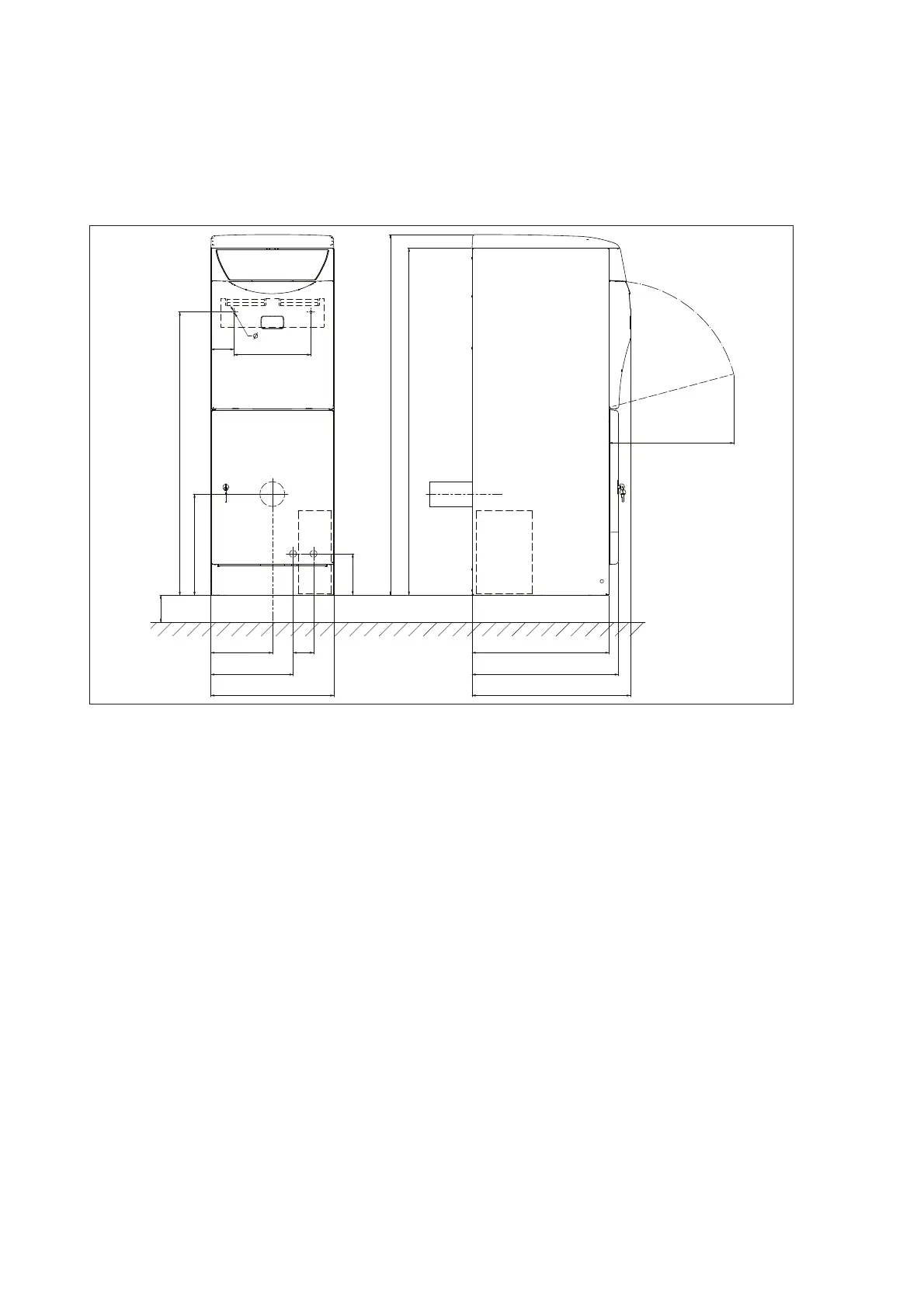

Figure 3. Scale drawing
1. Hot Water
2. Cold Water
3. Waste connection, P,
wall
4. Wall bracket
5. Transformer
Transformer:
• Dimensions: 300x200x210.
• Positioning: The transformer can be moved, see “Connecting
electrical power”.
