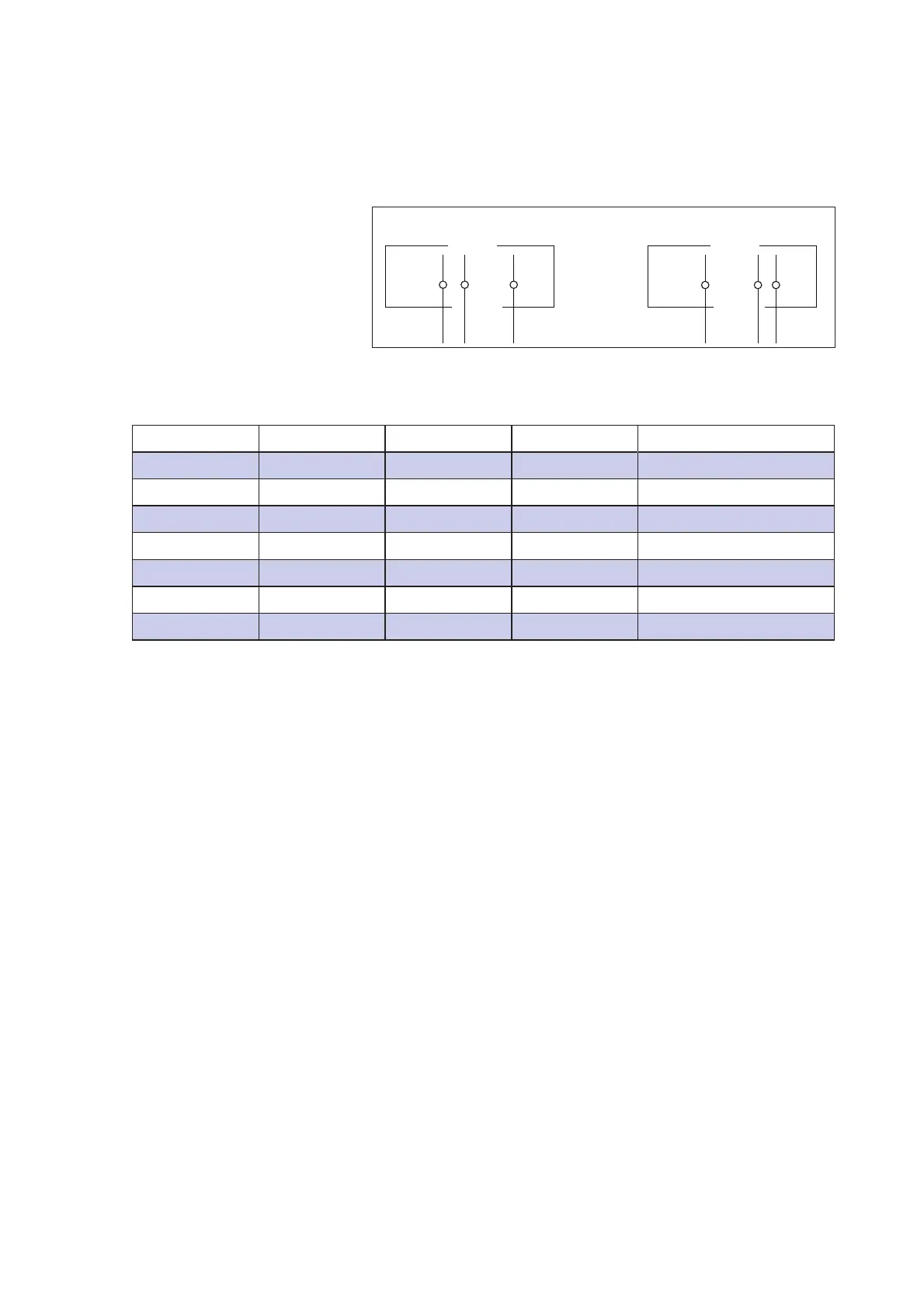

2.6.3 Connection diagram
004721
L1 L2 PE
L1 L2 PE
-X50
2+PE
L1 N PE
L1 N PE
-X50
1N+PE
Figure 10. Connection diagram
2.6.4 Coupling alternative
Voltage Connection Frequency Fuse Power requirement
240 V 2+PE (TN) +] 2 × 15 A 3.3 kW
240 V 1N+PE (TN) +] 1 × 16 A 3.3 kW
230 V 1N+PE (TN) +] 1 × 16 A 3.0 kW
230 V 1N+PE (TN) +] 1 × 16 A 3.0 kW
208 V 2+PE (TN) +] 2 × 15 A 3.0 kW
200 V 2+PE (TN) +] 2 × 16 A 3.0 kW
200 V 2+PE (TN) +] 2 × 16 A 3.0 kW
2SHUDWHVZLWKLQ0$,16VXSSO\YROWDJHÀXFWXDWLRQVXSWRRI
the nominal voltage.
