The following is provided for the connection of a Beta part: DPTE-DispoBag
TM
or DPTE-
Tubing
TM
.
This system is completely interlocked. It allows completely safe connection / disconnection of
the Alpha and Beta parts. The door can only be opened using the lever when a Beta part is
connected to the Alpha part and, likewise, the Beta part can only be disconnected if the door is
closed.
The dummy container is used to facilitate biodecontamination of the seal surface. It can be
replaced with a multipurpose container (supplied as standard).

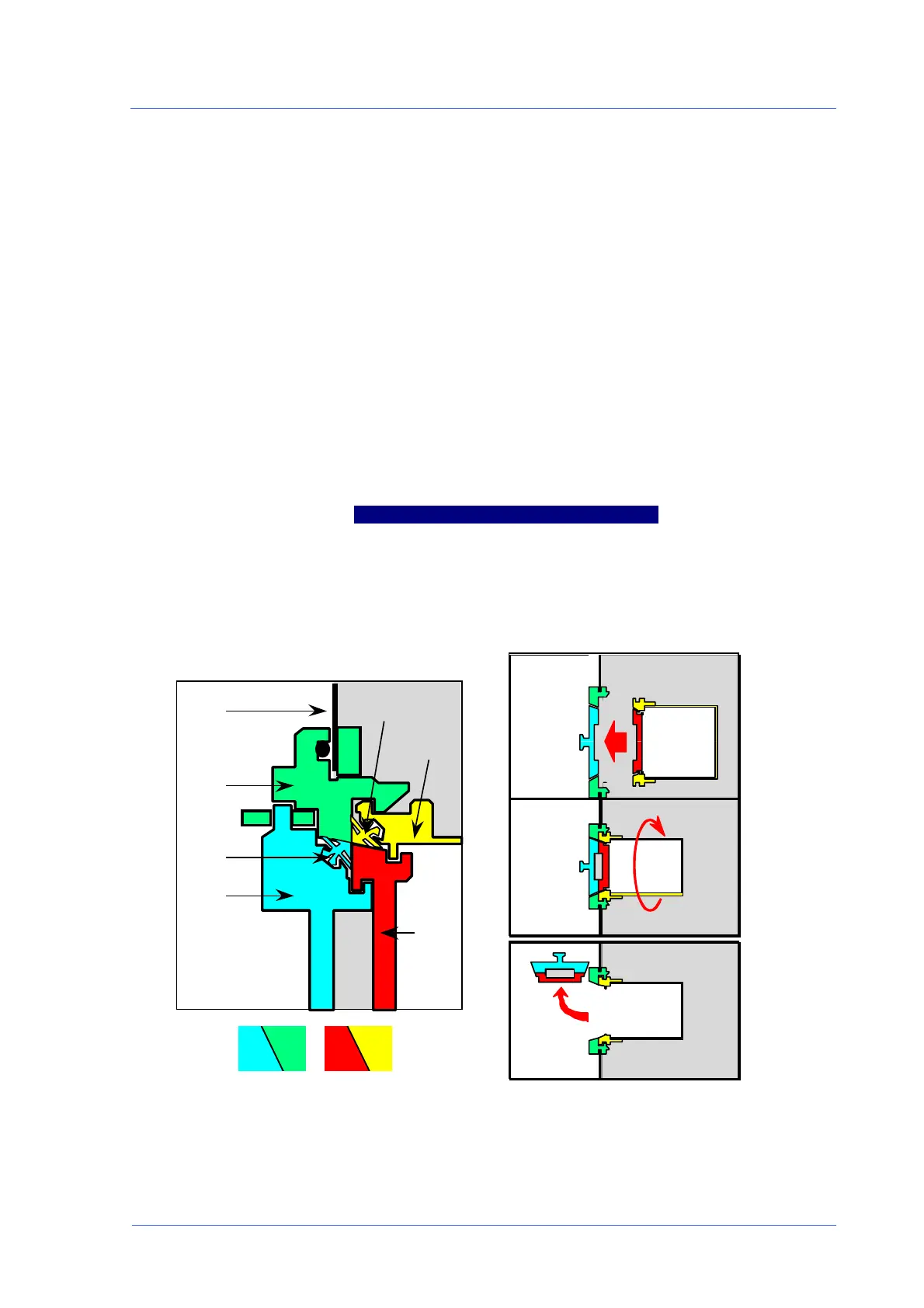

Operating principle of the DPTE® system
1.
Moving the
container
forwards
3 .
Opening of the
double door
2 .
Locking by
rotation
Alpha
Part
Beta
Part
Cell
flange
Cell
door
J3L I seal
Wall
Container
door
Cell
flange
J3LE se
al
Description of principle
- 2 Alpha and Beta parts
- 2 opposing lip seals
- 4 overlapping components, interlocked by rotation of the Beta part
