User view

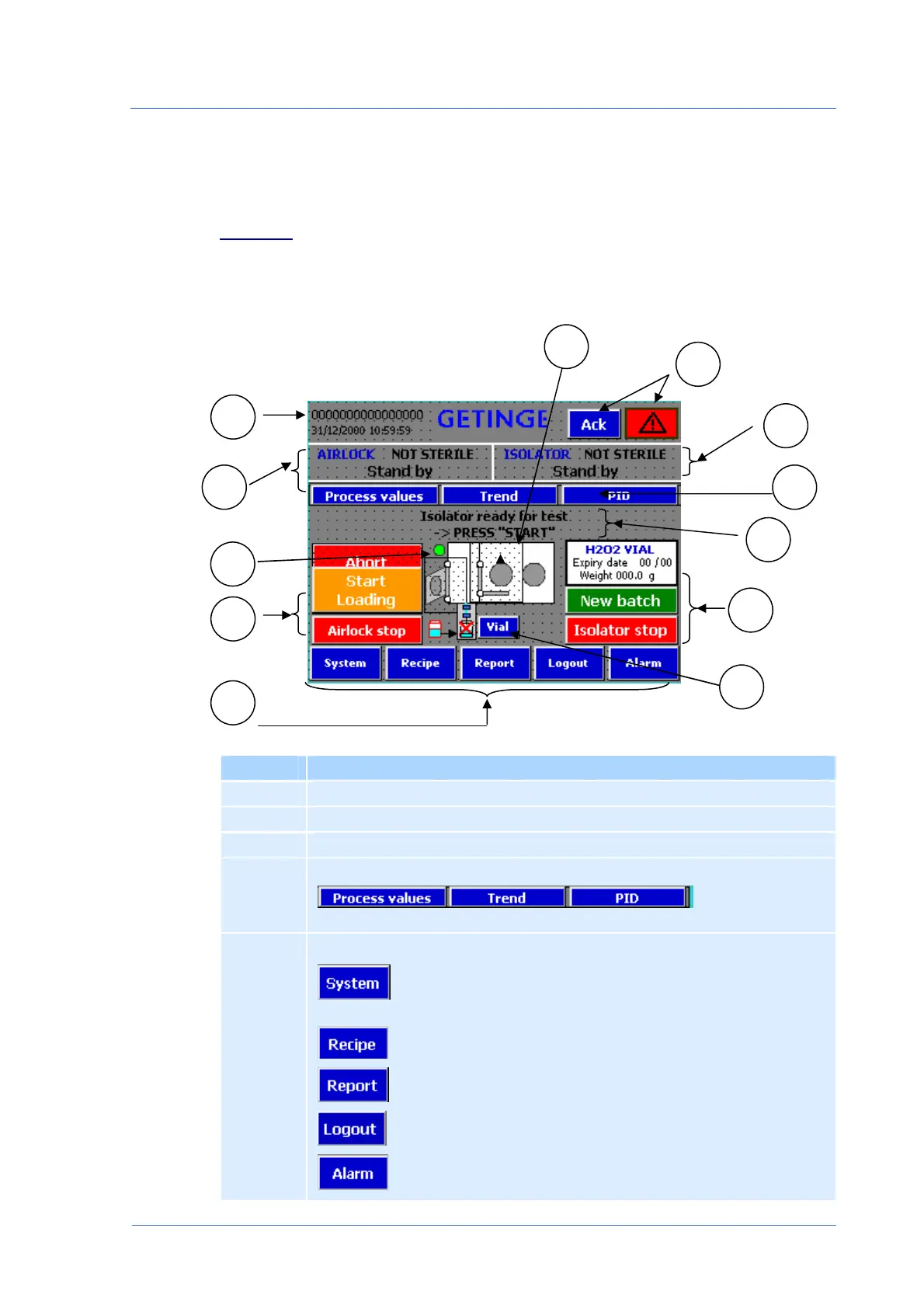

To start a complete cycle, the operator must follow the instructions on the panel with the
help of the block diagram.
Number Designation
1
Operator instructions
2
Block diagram of a cross-section of the machine
3
User logged in
4
Alarm in progress (appears when an alarm is active) OR
providing access
to the process values or the curves or the PID.
5
Buttons to access the various menus.
Provides access to the system configuration menu (access
level >= Maintenance).
Provides access to the recipes (access level >= Validation).
Provides access to the reports (access level >= Operator).
Allows the operator to log out from the system.
Displays the alarm window (access level >= Operator).
3
9
8
5
10
7
4
1
6
2
11
12
