GEZE ECdrive H Pre-Installation Instructions

ECdrive H
10
Pre-mounting

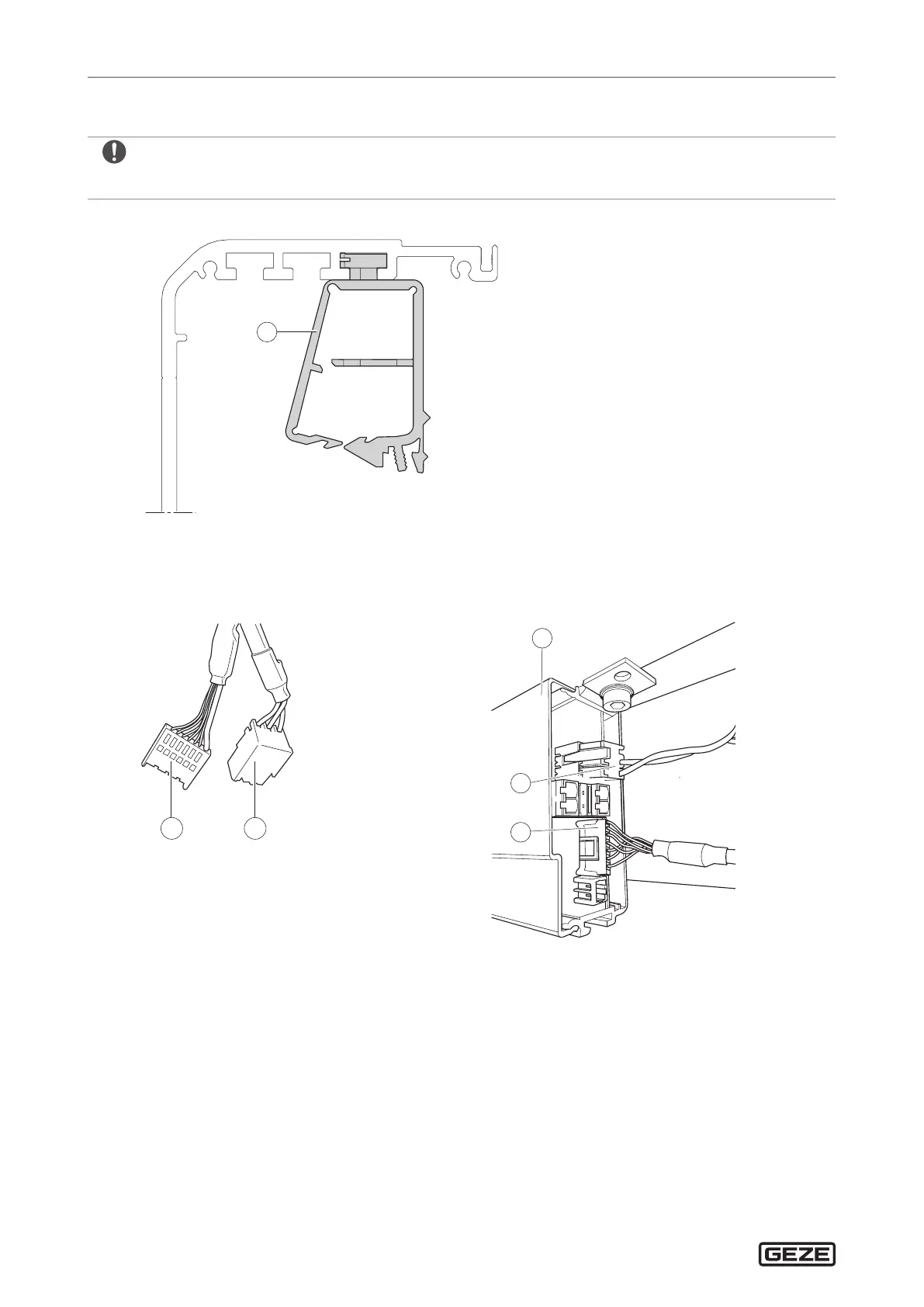

5.5 Installing cable guides
Cables can be cut!
X
Lay cables in such a way that there are no cables near the moving parts.
Cable guide spacing approx. 200 mm.

X
Fix the cable guide (1) on the track.
5.6 Connecting motor gear unit and control unit
 
3
1
2
X
Route the rotary encoder cable (2) and motor connection cable (1) to the control unit (3).
X
Insert the connector into the control unit (3).
