ECdrive H
8
Pre-mounting
5 Pre-mounting
The most up-to-date diagram is applicable for performing the pre-installation work. All components must be
identied and installed in accordance with the drive drawing.
5.1 Machining the track and cover
X
Check proles for damage.
X
Cut the track and cover to the required length (see machining
drawings, Chapter 4.1)
X

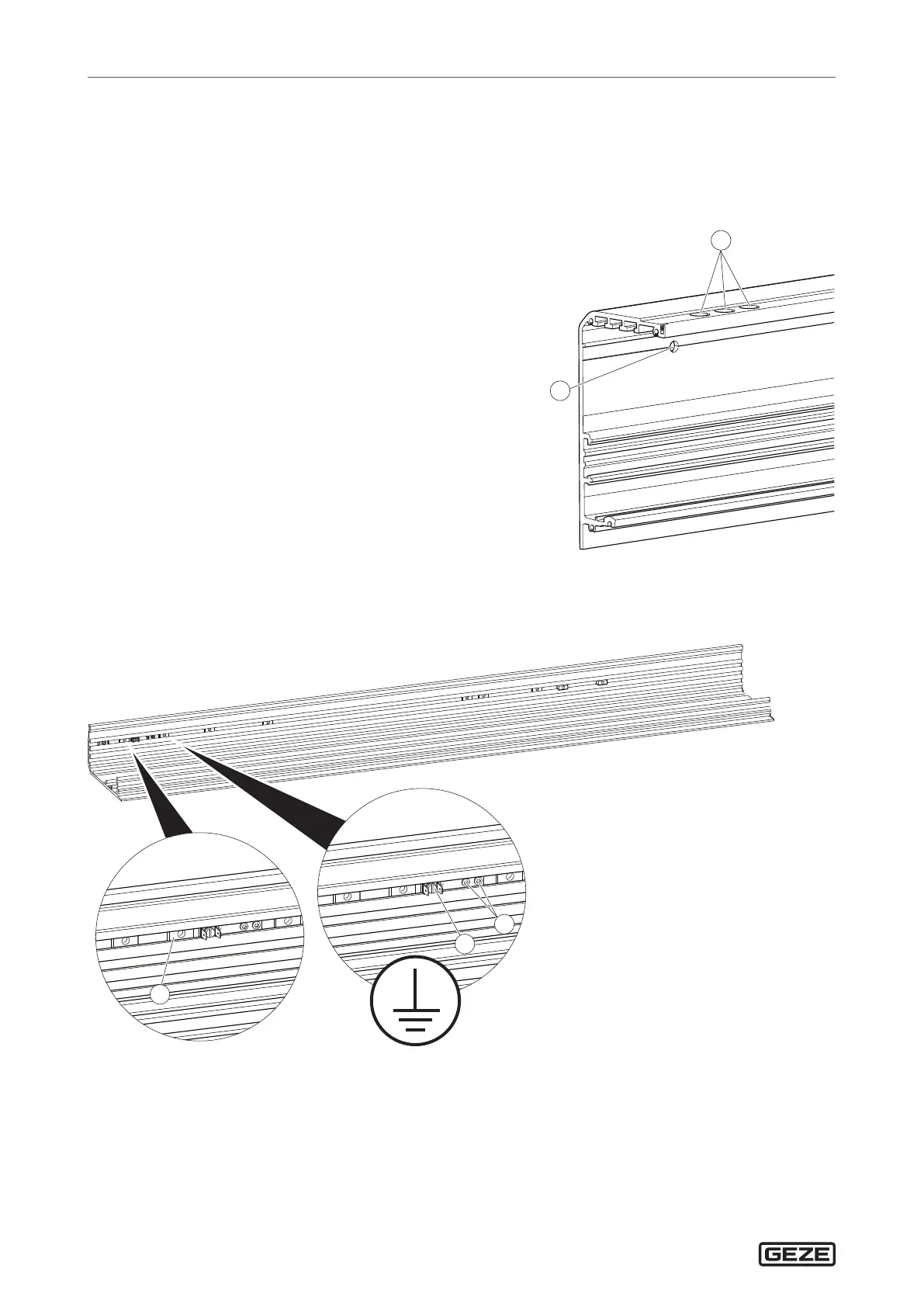

Install the line-feed (1) and drill holes (2) according to the
drawing.
X
Clean the track and cover after machining.
5.2 Preparing the track
X
Slide sliding blocks (1) and earthing jumpers (2) into the mounting groove in accordance with the drive drawing.
X
Screw on the earth jumpers (2) using the screws (3) (torque 4Nm).
