GEZE ECdrive H Pre-Installation Instructions

ECdrive H
7
Overview

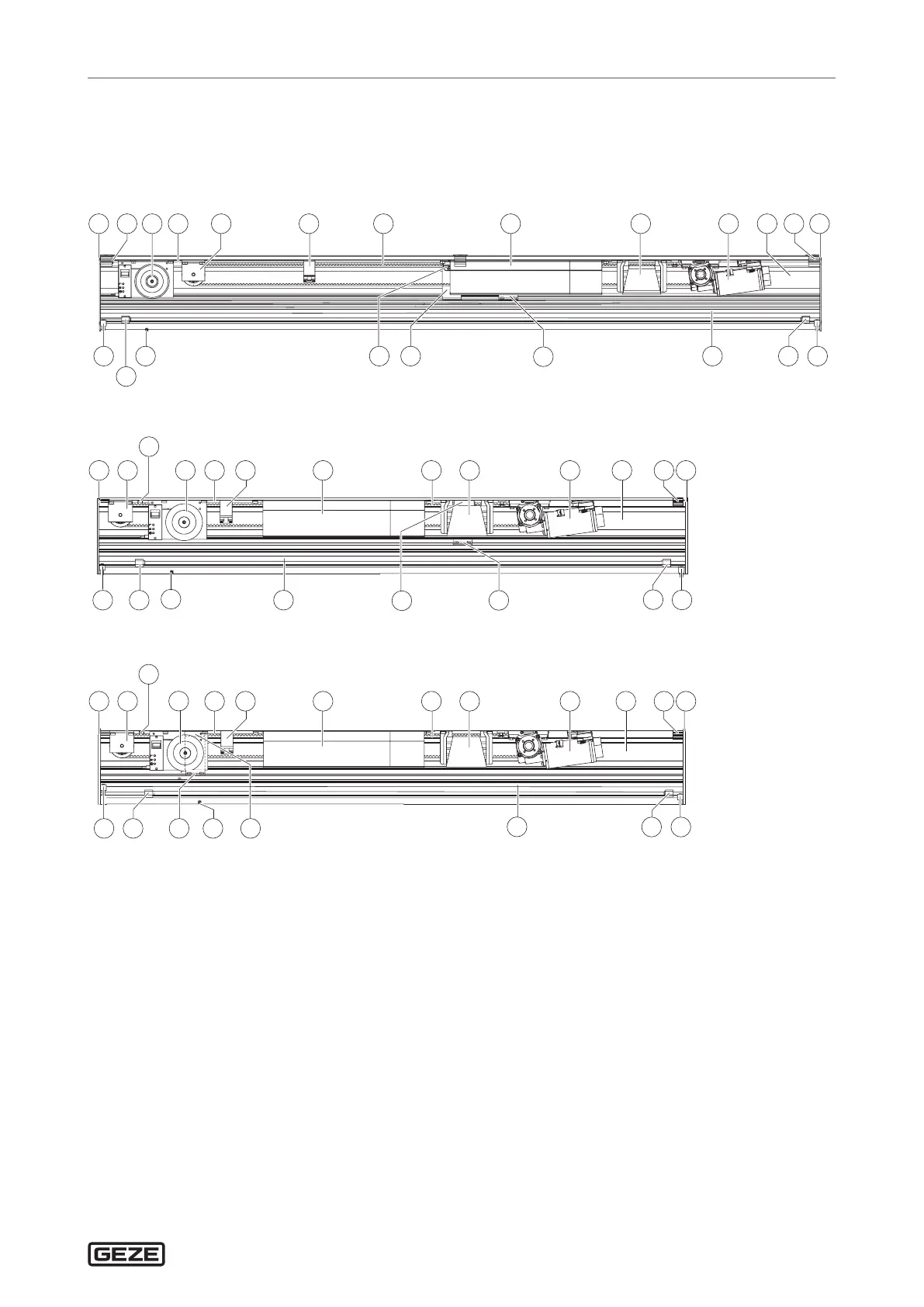

4.4 Components and assembly groups
These illustrations show the equipment of a standard drive in 2-leaf and 1-leaf version.
The structure of the assembly groups can vary depending on the drive equipment or version. Precise details
about positioning of the individual components are provided on the drive drawing.
2-leaf




 
           
1-leaf, right hand slide to open


       


 





1-leaf, left hand slide to open


      







4.5 Bill of material VP-Kit ECdrive H
1 Side plate
2 Transformer ground
3 Transformer
4 Transformer cable
5 Deection pulley
6 Cable guide
7 Tooth belt
8 Control unit
9 Rechargeable battery
10 Motor gear unit
11 Cover
12 Cover catch
13 Stop buer
14 Track
15 Driver, short
16 Driver, long
17 Belt lock
18 Cover earthing
- Div. clear adhesive labels
- Accessories attachment drive
components
- Accessories for cable fastening
- Installation instructions
- User manual
- Wiring diagram
- Log book
- Safety analysis
- EC Installation Declaration of Conformity
- Inspection certicate booklet
- Type test mark
- Drive drawing
- Roller carriage
