GEZE ECdrive H Pre-Installation Instructions

ECdrive H
9
Pre-mounting

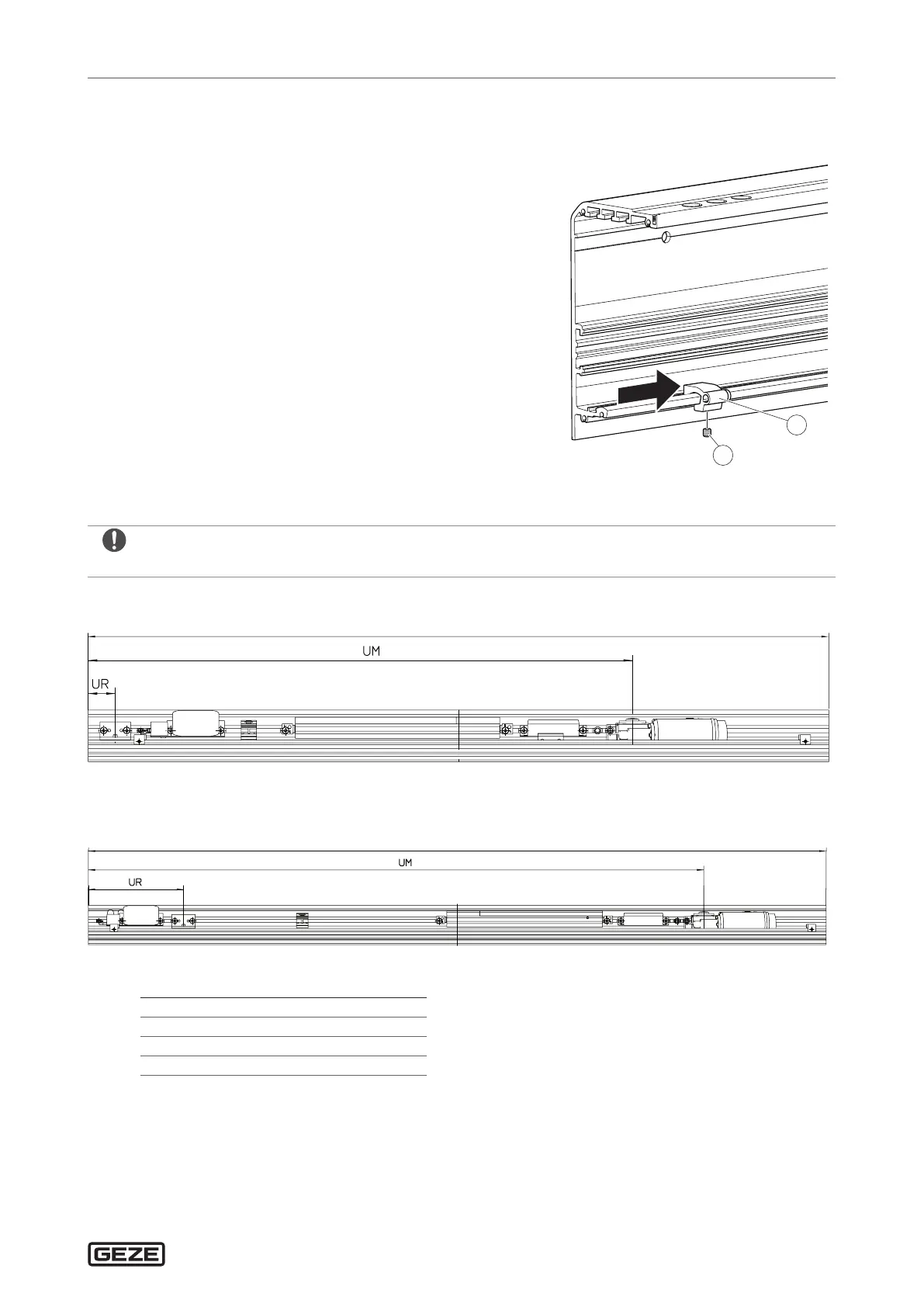

5.3 Installing stop buers
Stop buer: Pos. 13 in assembly group list, Chapter 4.4
X
Set stop buers on the track on the left and
right (1).
X
Screw in the setscrews M6×6 (2) until they are in
contact with the track.
Do not tighten the setscrews.
The exact position of the stop buers (1) is specied
during door leaf installation.


5.4 Installing the drive components
The exact positioning of the components is given on the drive drawings.
Illustrated: 1-leaf, ÖW = 700mm
AL
Illustrated: 2-leaf, ÖW = 900mm
AL
Legend:
AL Drive length
ÖW Opening width
UM Deection pulley motor gear unit
UR Deection pulley
X
Install the components with the screws provided in accordance with the drawing.
à Deection pulley torque 15 Nm
à Torque for other components 10 Nm
