3031 Schüttelinkubator
Shaking Incubator
Seite / Page 17 Rev.02 vom / dated 31.03.2014

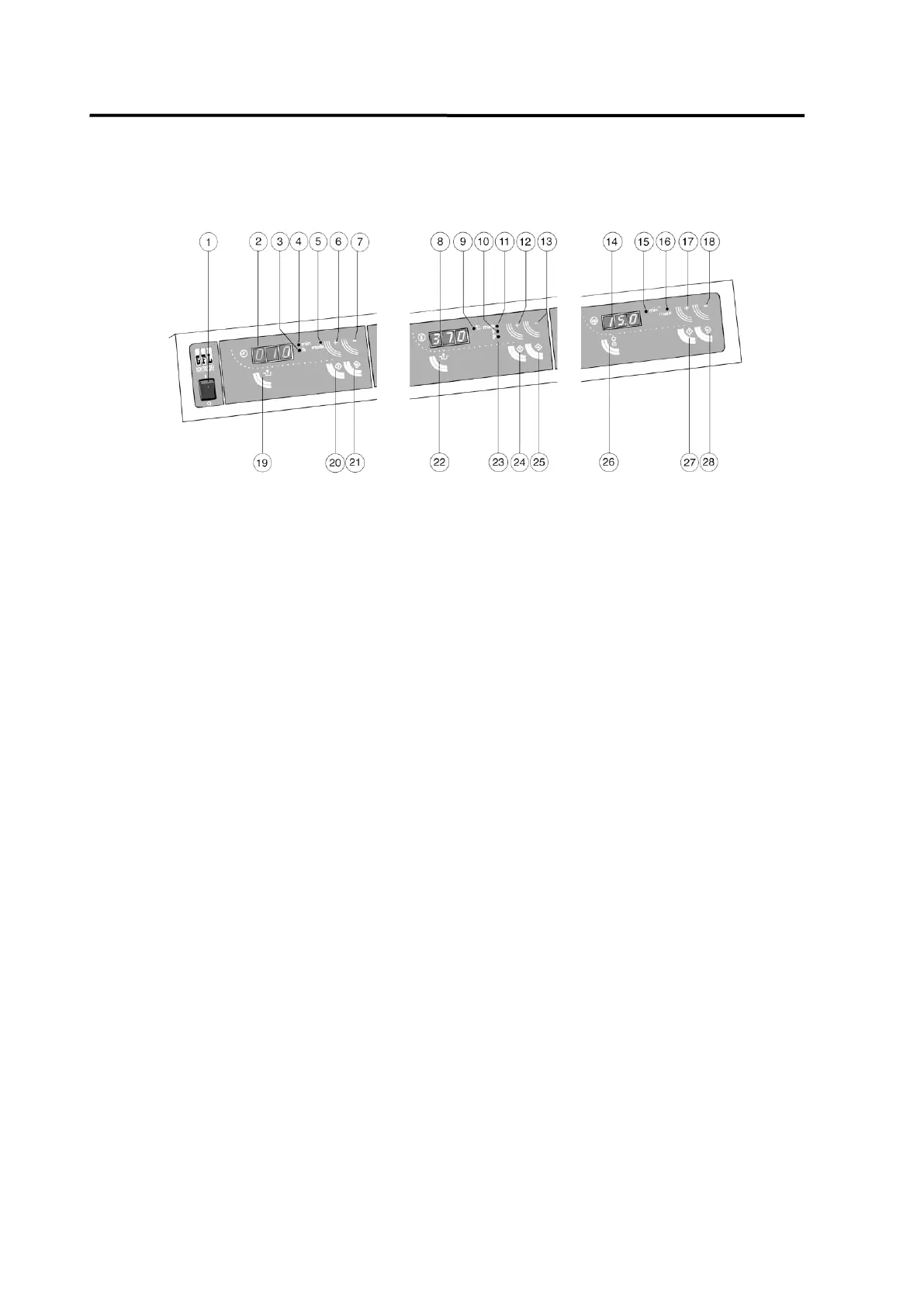

5.2 Operation and display elements of the control panel
1 Main switch
Operation panel incubation time
2 Display incubation time
3 Pilot lamp "time" in the display, hours
4 Pilot lamp "time" in the display, minutes
5 Pilot lamp "total running time" in the display
6 Change-over key for total running time and for entry of higher set points
7 Entry of lower set points
19 Key to switch off alarm signal after expiry of preset running times
20 Changer-over key alteration of total running time
21 Confirmation of new total running times
Operation panel temperature controller
8 Display for set and actual temperatures
9 Pilot lamp "actual temperature" in the display
10 Pilot lamp difference value of over-temperature alarm in the display
11 Pilot lamp set temperature in the display
12 Change-over key between display and entry of higher set points
13 Entry of lower set points
22 Key to switch off alarm signal
23 Pilot lamp difference value of under-temperature alarm in the display
24 Change-over key for alteration of set points
25 Confirmation of new set points
Operation panel shaking frequency control
14 Display for actual and set shaking frequencies
15 Pilot lamp "actual shaking frequency" in the display
16 Pilot lamp "set shaking frequency" in the display
17 Change-over key between the displays and entry of higher set points
18 Entry of lower set points
26 Shaking movement on/off
27 Change-over key for alteration of set points
28 Confirmation of new set points
