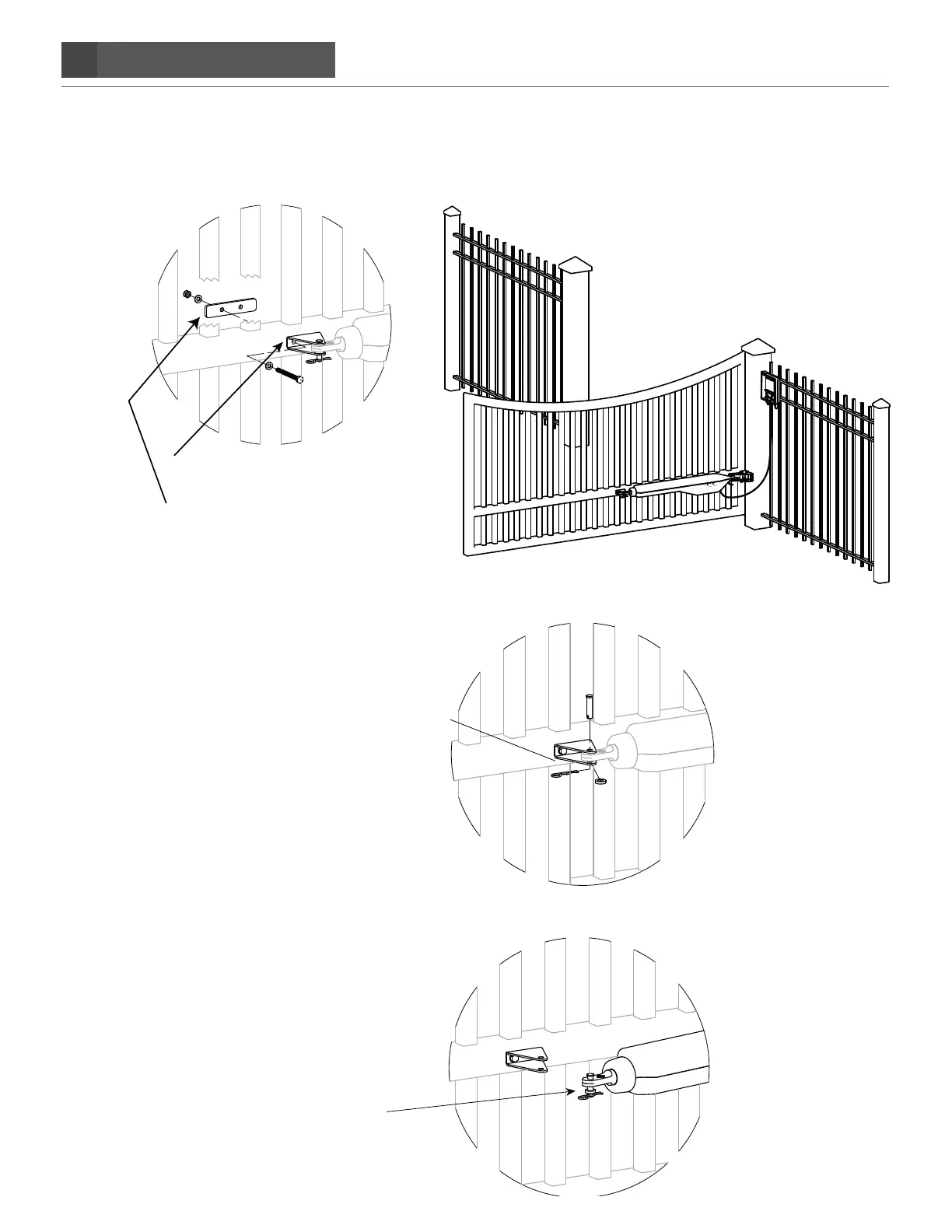

B. Install the front mount gate bracket and estate bracket on the gate by aligning the outermost hole of both
brackets and inserting (1) M8 x 65mm flat washer, and (1) M8 nylon locknut through both the estate and
front mount bracket, as show below. Tighten to secure the brackets to the gate. MAKE SURE GATE IS STILL
IN OPEN POSITION (arm must be fully retracted).
Estate Bracket install
on backside of gate
Front Mount Bracket
C. Disconnect operator from gate bracket and swing away from the gate.
Remove the clevis pin,
hair pin, and front spacer.
D. Assemble clevis pin, front spacer and hair pin to operator to prevent loss.
Temporarily assemble cotter pin,
hair pin, and front spacer into
front mount
