Hardware Installation
16

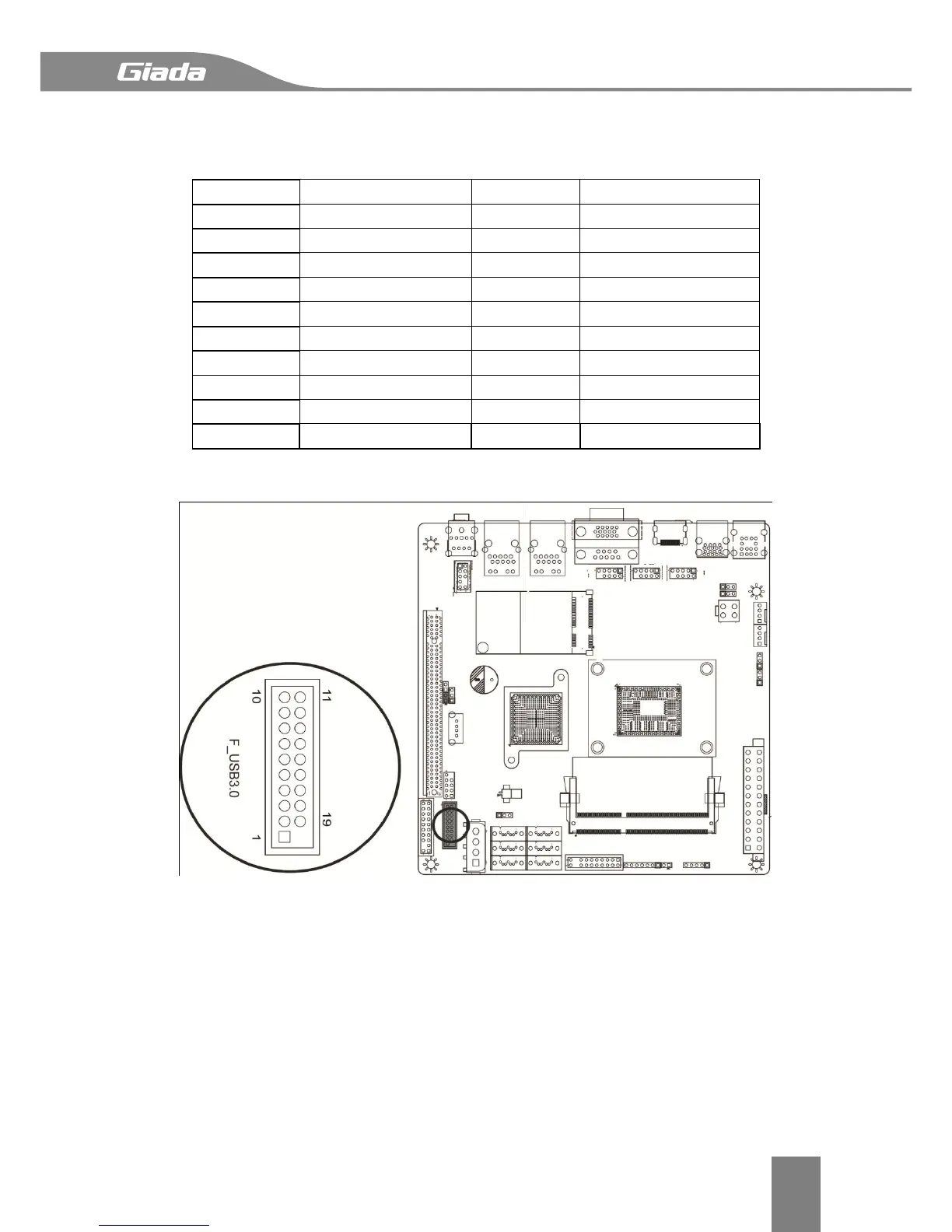

2.5.7. F_USB3.0
Front Panel USB 3.0 header, supports two USB3.0 ports.
Pin#
Definitions
Pin#
Definitions
1
5V
2
F-USB3.0 RXDN2
3
F-USB3.0 RXDP2
4
GND
5
F-USB3.0 RXDN2
6
F-USB3.0 TXDP2
7
GND
8
F-USB2.0 0_N2
9
F-USB2.0 0_P2
10
F_OCP
11
F-USB2.0 0_P1
12
F-USB2.0 0_N1
13
GND
14
F-USB3.0 TXDP1
15
F-USB3.0 TXDN1
16
GND
17
F-USB3.0 TXDP1
18
F-USB3.0 TXDN1
19
5V
20
NC
