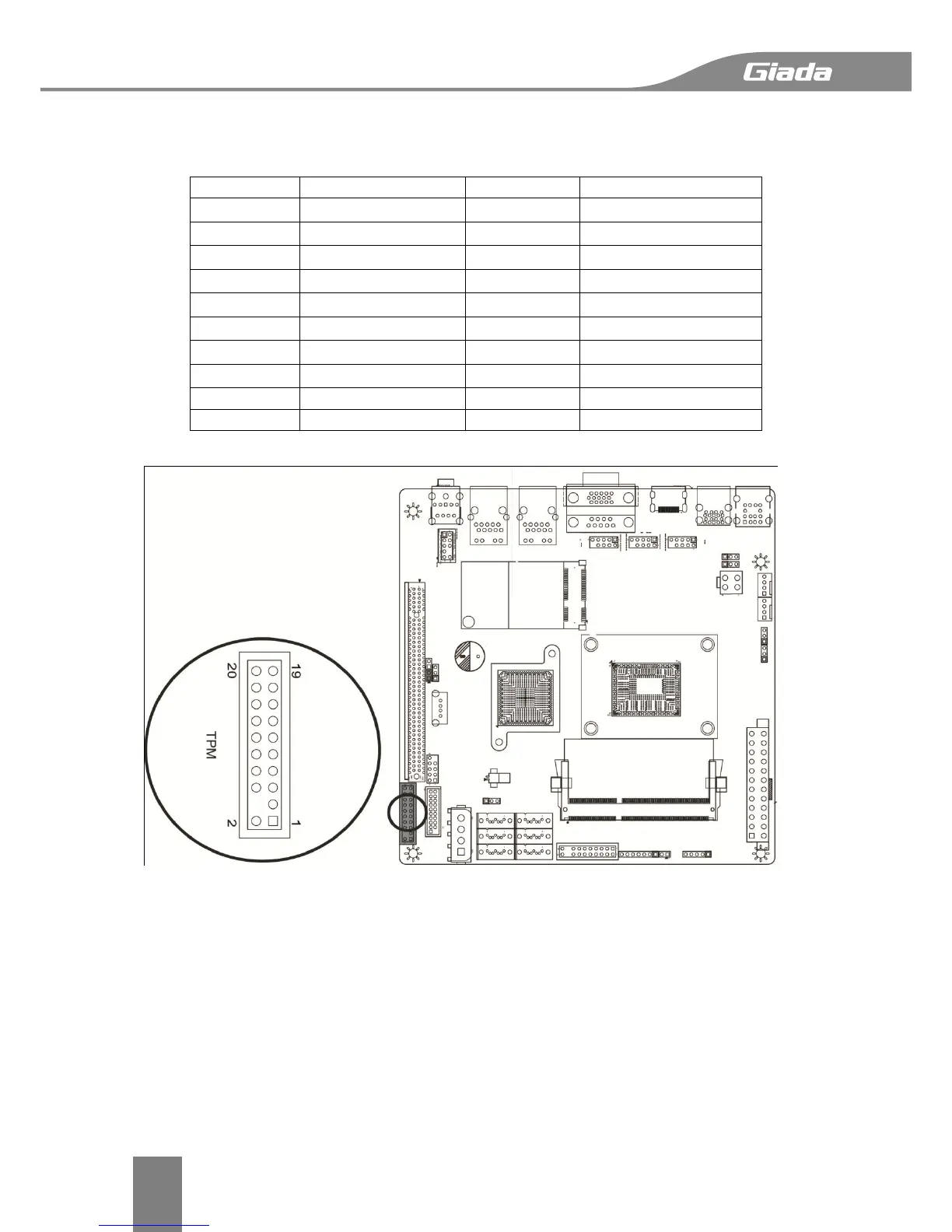

2.5.8. TPM Header
TPM header is used to connect a Trusted Platform Module(TPM is a third party device can be
plugged into this board providing protection for your PC, BIOS, OS and net connection, etc. ).
Pin#
Definitions
Pin#
Definitions
1
CLK
2
GND
3
FRAME
4
5
RESET
6
5V
7
AD3
8
AD2
9
3V3
10
AD1
11
AD0
12
GND
13
RSV0
14
RSV1
15
3V3_SB
16
SERIRQ
17
GND
18
CLKRUN
19
LPCPD
20
RSV2
