Hardware Installation
18

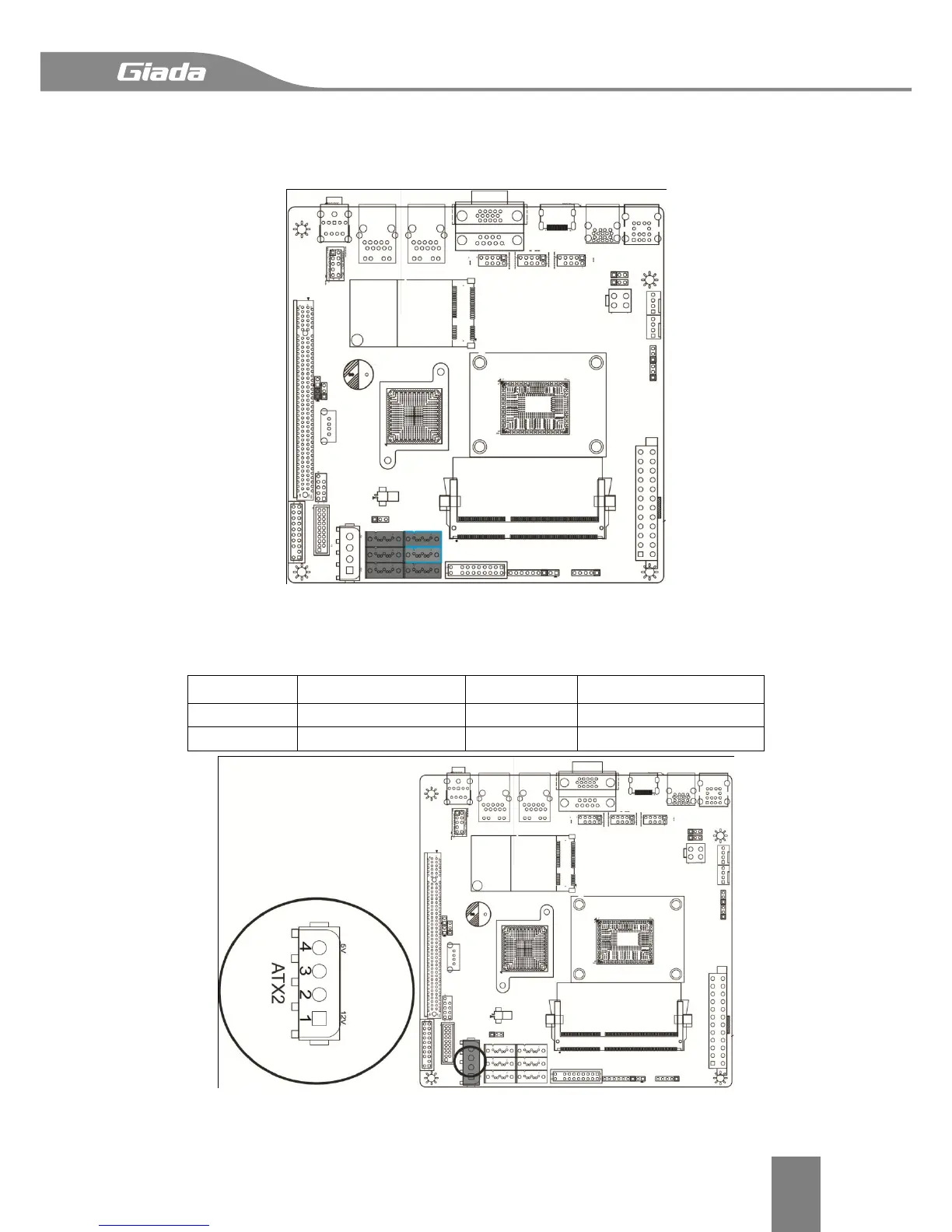

2.5.9. SATA
SATA0/1 support SATA3.0 technology, provide up to 6Gbps transmission speed;
SATA2/3/4/5 support SATA2.0 technology, provide 3Gbps transmission speed.
2.5.10. ATX_1x4P
Power Connector for Add-on devices. (Note: Do NOT plug the power supply cable into this
socket)
Pin#
Definitions
Pin#
Definitions
1
12V
3
GND
2
GNG
4
5V
