2.5.11. J6

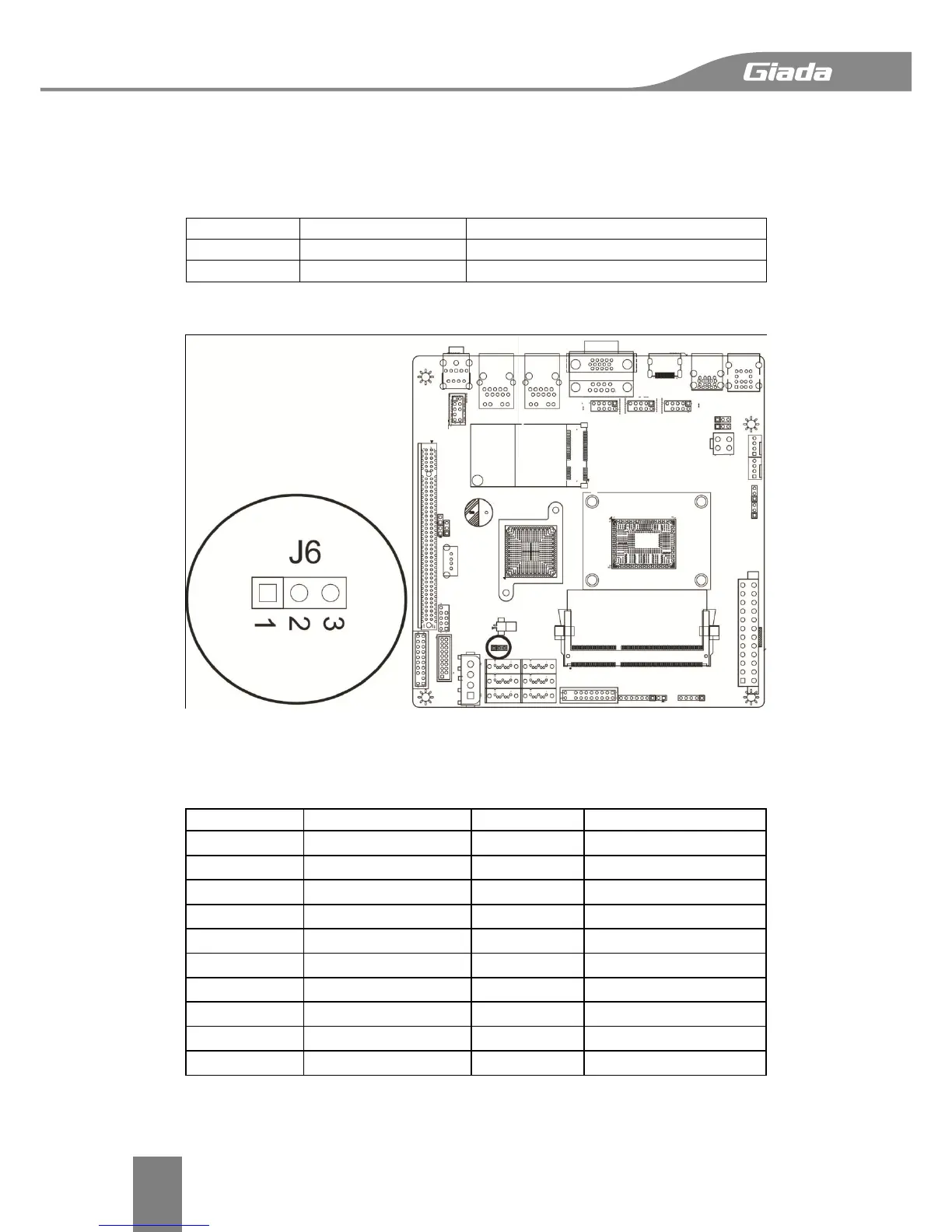

Jumper J6 allows you to enable or disable the m-SATA port. m-SATA port and SATA port 3 use
the same data transmission channel, this two ports can not work at the same time and you
need to enable one and disable the other one. The default setting is enable m-SATA port and
disable SATA port 3.
Pin#
m-SATA
SATA3
1-2
Enable
Disable
2-3
Disable
Enable
2.5.12. F_PANEL
Front panel header, the following form shows the definition.
Pin#
Definitions
Pin#
Definitions
1
Signal
2
GND
3
Reset
4
GND
5
VCC
6
GND
7
VCC
8
Signal
9
VCC
10
GND
11
VCC
12
GND
13
3.3V
14
HD Active
15
3.3V
16
GND
17
X
18
X
19
Signal
20
GND
