Hardware Installation
20
2.5.13. JD1

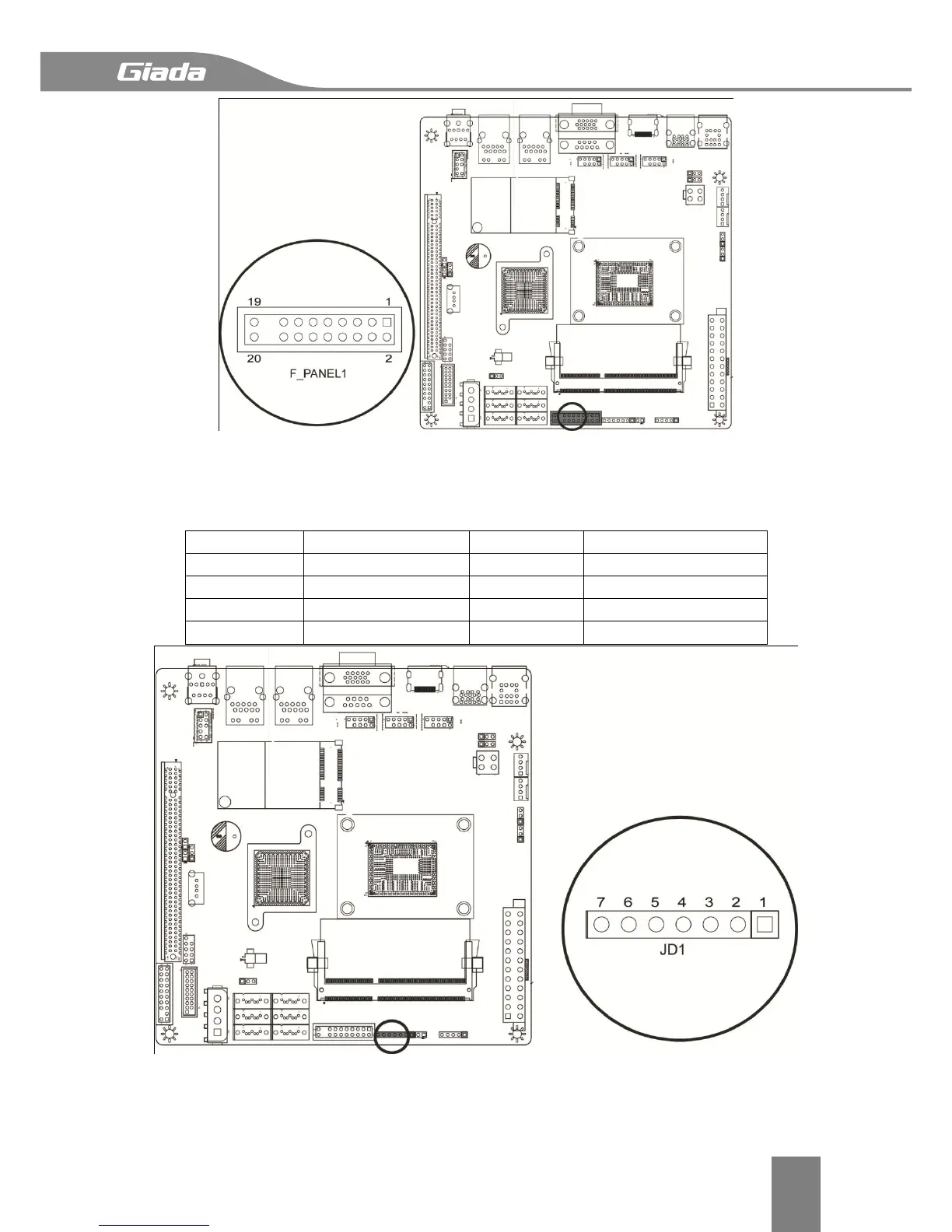

External Buzzer/Speaker/Power LED, Pins 1-3 (Power LED), Pins 4-7 (External Speaker).
Pin#
Definitions
Pin#
Definitions
1
Power LED
5
External Speaker
2
Power LED
6
External Speaker
3
Power LED
7
External Speaker
4
External Speaker
