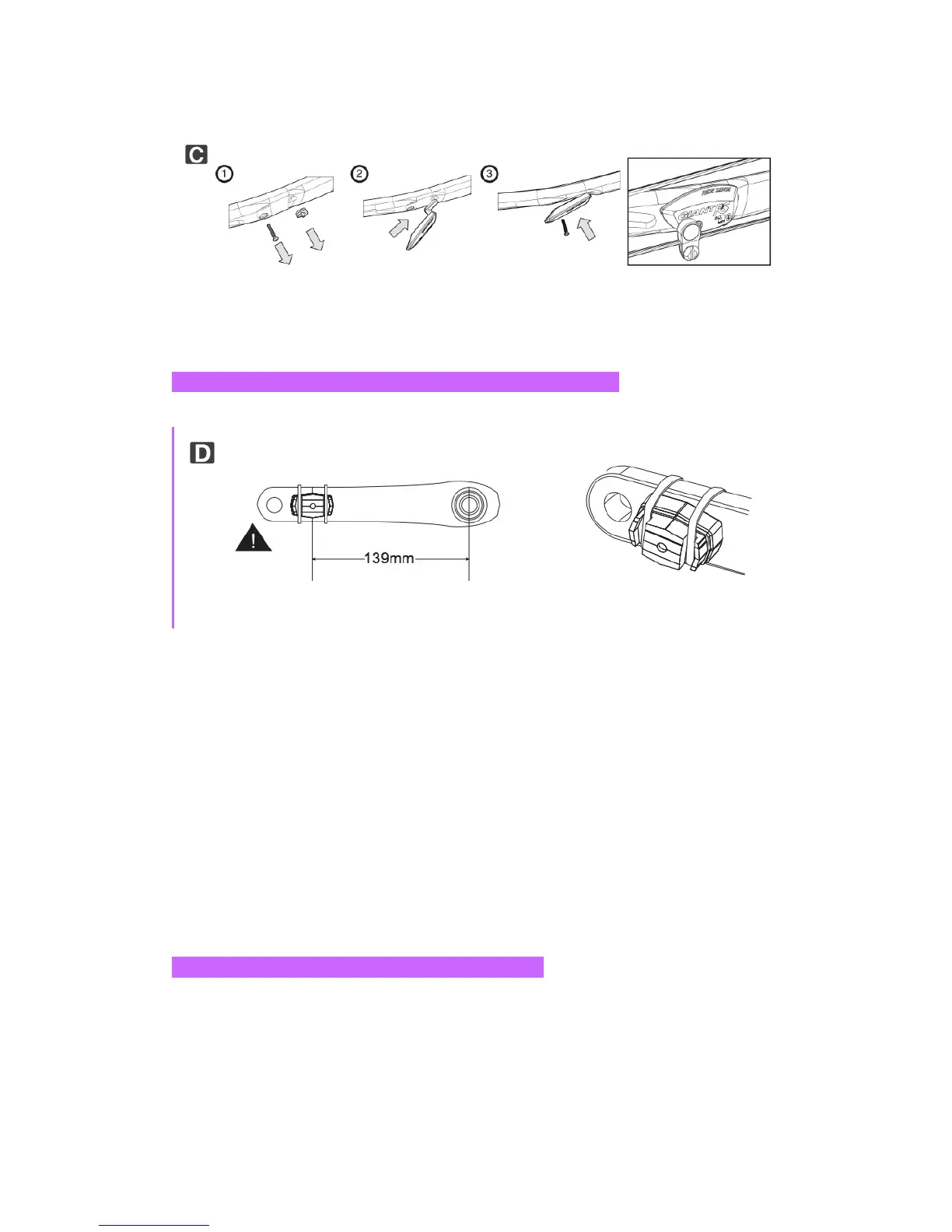

Installing the peddling frequency sensor magnet (PFSM): D
Note: Please fasten the PFSM to the crank with the included tie. Tear off the tape
at back of the PFSM, attach and fix it at inside of the left crank 139mm away
from center of the press fit with the included ties, rotate the crank to test starting
the PFSM.
Note: Raise the PFSM with included pad to keep it within 7mm from the frame
or motion of the PFSM may fail to be detected.
Installation the speed sensor magnet (SSM): E&F
Note: Keep the SSM and RIDESENSE 2~10mm away from each other. You may
flip the SSM and install it to the back wheel spoke to ensure the proper gap
between the two.
