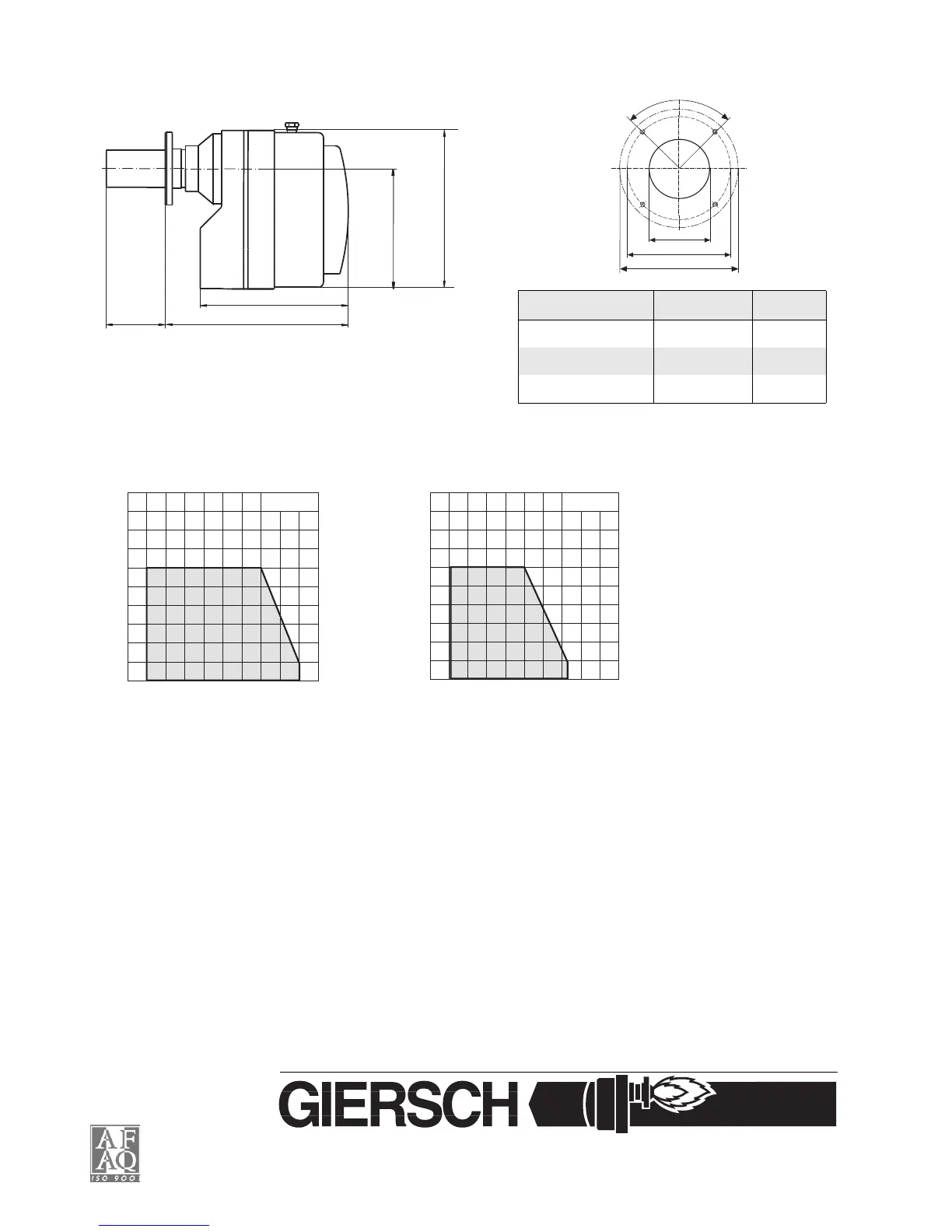

Burner overall dimensions / boiler connection dimensions (RG30 dimensions in brackets)
Working ranges
DVGW-tested working ranges to DIN EN 676.
70-165
(130-190 )
344
(368)
392-452
(405-500)
292
(340)
377
(444)
All dimensions in mm
M8
k
d
f
90°
RG 20 RG 30
Pipe outside dia. d 102 130
Hole circle dia. k 170(140-180) 170-200
Outside dia. f 194 220
5
4
3
2
1
0
RG20
40 60 80 100 120
Brennerleistung [kW]
Feuerraumwiderstand [mbar]
5
4
3
2
1
0
RG30
100 150 200 250 300
Brennerleistung [kW]
Feuerraumwiderstand [mbar]
Burner capacity [kW]
Burner capacity [kW]
Furnace resistance [mbar]
Furnace resistance [mbar]
