8S651MP-RZ Series Motherboard
English
Step 3: Install expansion cards
1. Read the related expansion card's instruction document before install the expansion card into
the com puter.
2. Please make sure your AGP card is AGP 4X (1.5V).
3. Please carefully pull out the small white- drawable bar at the end of the AGP slot when you try to
install/ Uninstall the AGP card. Please align the AGP card to the onboard AGP slot and press firmly
down on the slot .M ake sure your AGP card is locked by the sm all white- drawable bar.

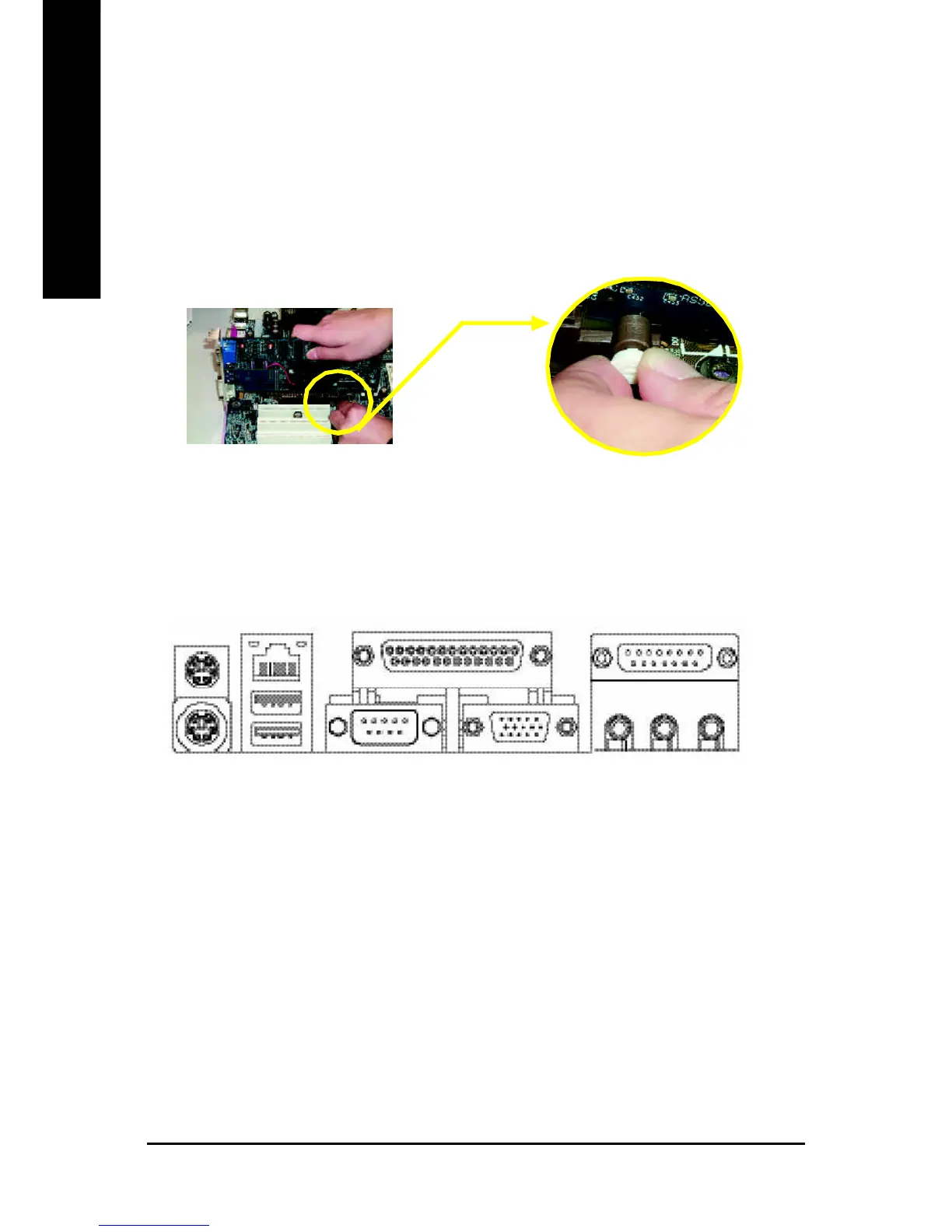

AGP Card
Step 4: Install I/O Peripherals Cables
Step 4-1: I/O Back Panel Introduction
u
v *
w
x
y z
{
|
}
~
u PS/2 Keyboard and PS/2 Mouse connector
This connector supports standard PS/2 keyboard and PS/2 m ouse.
v LAN port*
LAN is fast Ethernet with 10/100M bps speed.
w USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. Have a standard USB interface. Also m ake
sure your OS supports USB controller. If your OS does not support USB controller, please contact
OS vendor for possible patch or driver upgrade. For more inform ation please contact your OS or
device(s) vendors.
x Parallel port (LPT)
Device like printer can be connected to Parallel port.
y Serial port (COMA)
Mouse and modem etc. can be connected to Serial port.
"*" For 8S651MP-RZ only.
