- 13 - Hardware Installation Process
English
z VGA port
Monitor can be connected to VGA port.
{ Game/MIDI port
This connector supports joystick, M IDI keyboard and other relate audio devices.
| Line Out jack
Connect the stereo speakers or earphone to this connector.
} Line In jack
Devices like CD-ROM , walkm an etc. can be connect to Line In jack.
~ MIC In jack
Microphone can be connect to MIC In jack.
After installation of the audio driver, you are able to use 2/4/6-channel audio feature by software
selection. You can connect "Front speaker" to "Line Out" jack, Connect "Rear speaker" to "Line In"
jack and connect "Center/Subwoofer" to "MIC In" jack.

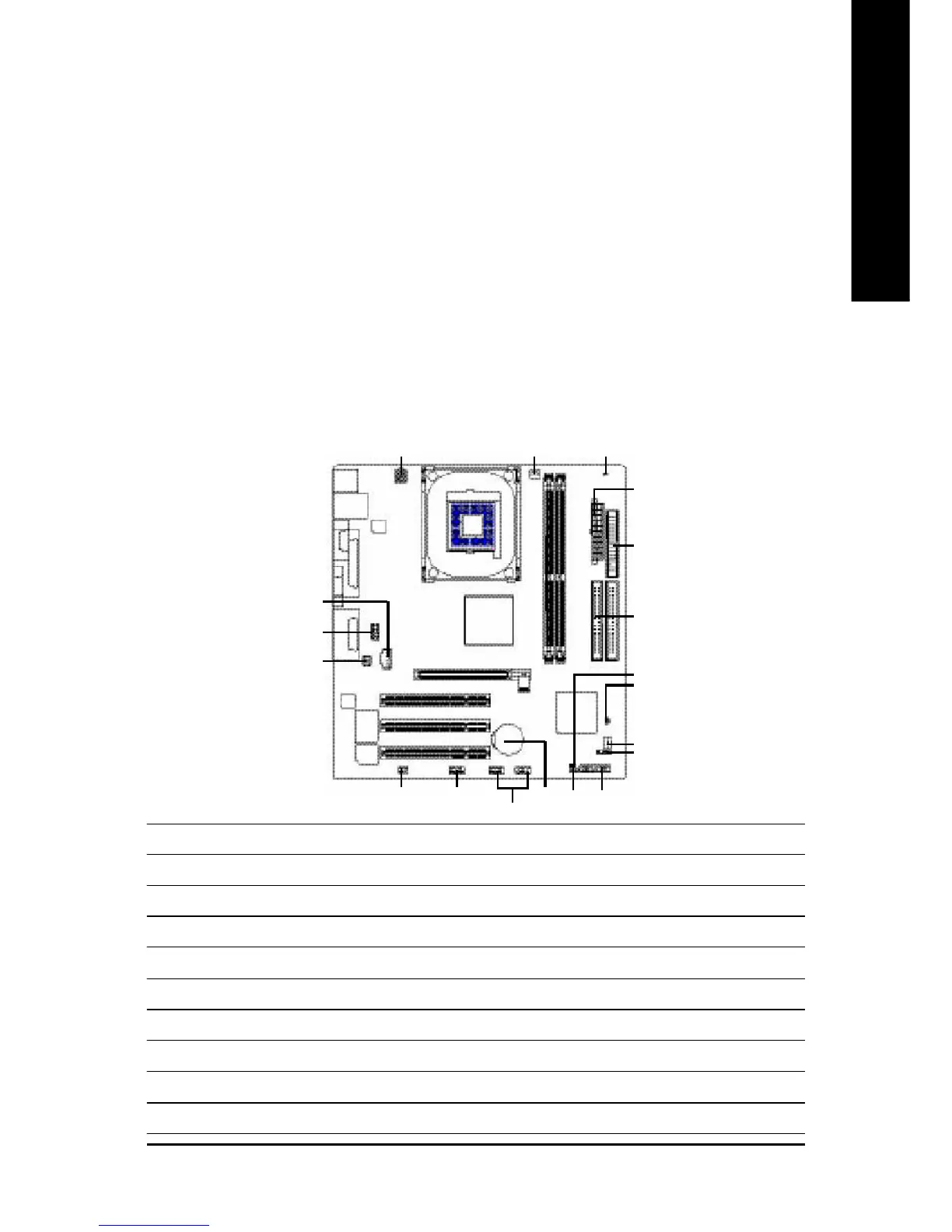

Step 4-2: Connectors Introduction
1) ATX_12V 11) F_AUDIO
2) ATX 12) SUR_CEN
3) CPU_FAN 13) CD_IN
4) SYS_FAN 14) SPDIF_IO
5) IDE1/IDE2 15) IR
6) FDD 16) F_USB1/F_USB2
7) DIMM_LED 17) COMB
8) F_PANEL 18) CI
9) PWR_LED 19) CLR_CMOS
10) BAT
31 7
15
9
10 817
16
14
4
6
5
18
13
11
19
12
2
