CPU Speed Setup
8
CPU Speed Setup

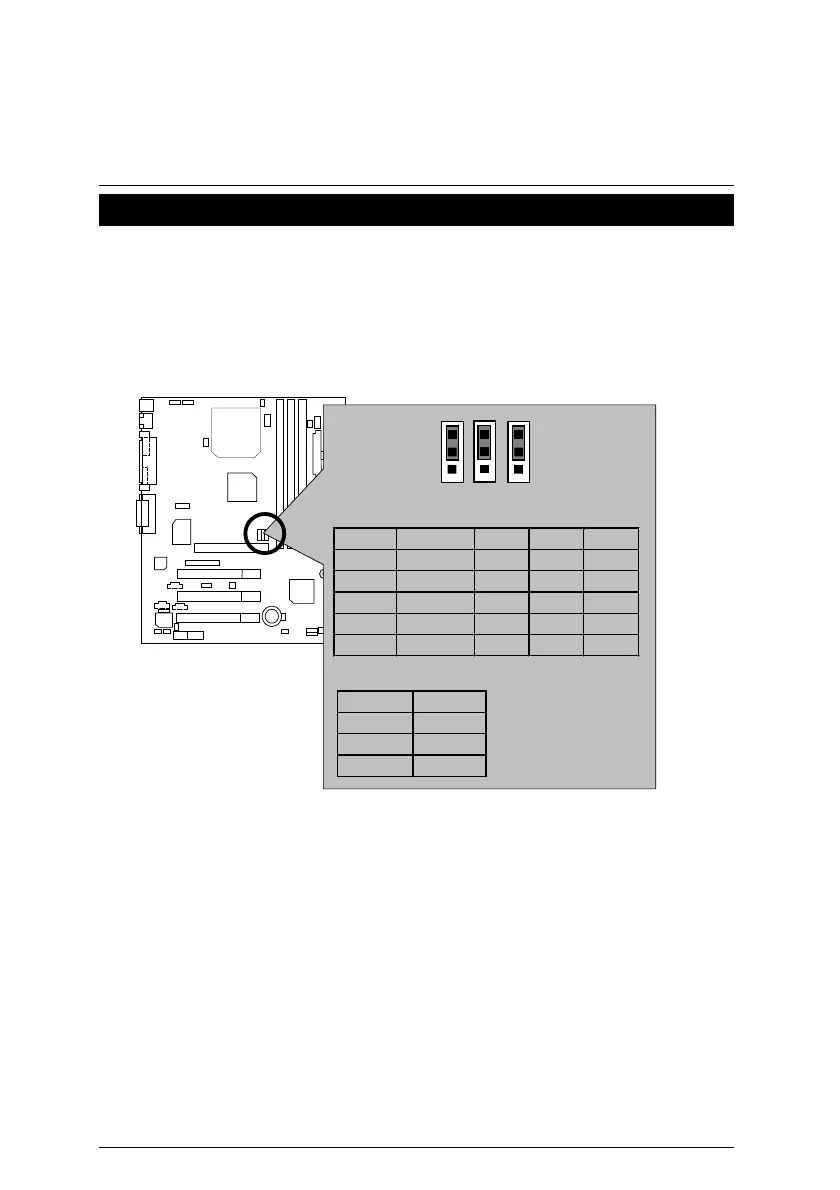

The system bus frequency can be switched at 66MHz, 100MHz, 133MHz and Auto by adjusting
JP10/JP11/JP26 (See Figure 1). The CPU Frequency is control by BIOS.
0
00
0
The CPU speed must match with the frequency RATIO. It will cause system hanging up
if the frequency RATIO is higher than that of CPU.
JP10/JP11/JP26: CPU Speed Setup (Optional)
CPU SDRAM JP10 JP11 JP26
Auto Auto 1-2 1-2 1-2
66 100 2-3 2-3 1-2
100 100 2-3 Open 1-2
133 133 Open 2-3 1-2
133 100 Open Open 2-3
JP26
1
JP11
1
JP10
1
CPU SDRAM
66 100
100 100
133 133
Auto Configuration:
Figure 1
Note: Please set the CPU host frequency in accordance with your processor’s
specifications. We don’t recommend you to set the system bus frequency over
the CPU’s specification because these specific bus frequencies are not the
standard specifications for CPU, chipset and most of the peripherals. Whether
your system can run under these specific bus frequencies properly will depend
on your hardware configurations, including CPU, Chipsets, SDRAM,
Cards….etc.
