Gigabyte GA-8INXP - Step 3-2: DPVRM (Dual Power Voltage Regulator Module) Installation

- 14 -
GA-8INXP Motherboard
English

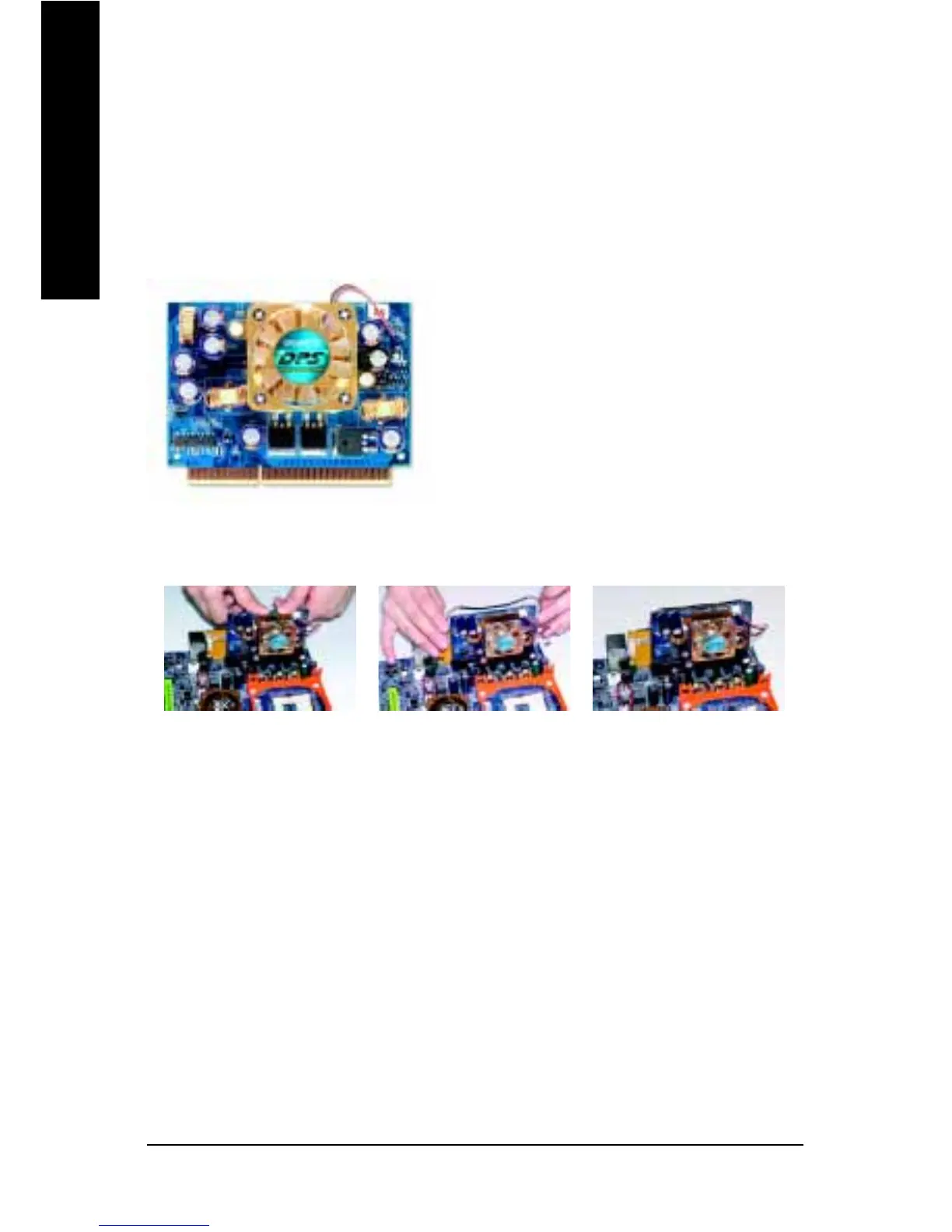

Step 3-2: DPVRM (Dual Power Voltage Regulator Module) Installation
1. The DPVRM connector has a notch, so the DPVRM can only fit in one direction.
2. Insert the DPVRM vertically into the socket and then push it down.
3. Fix the DPVRM on the motherbard with the clip.
4. Reverse the installation steps if you want to remove the DPVRM.
What is DPVRM ?
DPVRM (Dual Power Voltage Regulator Module) is a daughter card which can provide you the DPS
(Dual Power System) function. A cool stylish neon blue DPVRM that supply a total 6-phase power
circuit design, delivers a high durable power design for the new generation Intel
®
platform.
The DPVRM can work in a Dual Power System:
•¸Parallel Mode :
DPVRM and motherboard CPU power can work
simultaneously, providing a total of 6-phase power
circuit.
Step 1 Step 2 Step 3
How to install a DPVRM ?
