Gigabyte GA-8INXP User Manual

- 18 -
GA-8INXP Motherboard
English

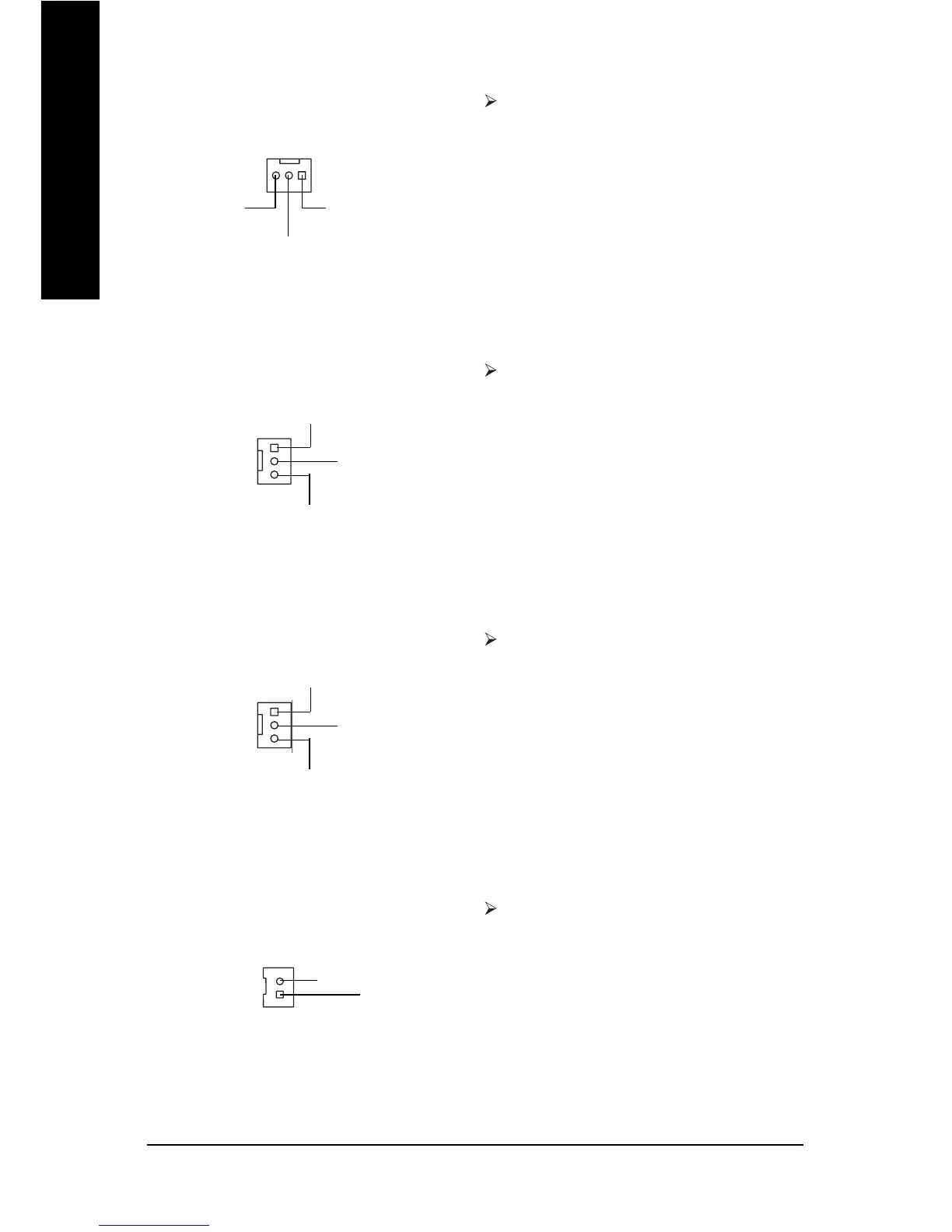

1) CPU_FAN (CPU Fan Connector)
Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from
running under abnormal condition or damaged
by overheating. The CPU fan connector
supports Max. current up to 600 mA.
2) PWR_FAN (Power Fan Connector)
This connector allows you to link with the
cooling fan on the system case to lower the
system temperature.
3) SYS_FAN (System Fan Connector)
This connector allows you to link with the
cooling fan on the system case to lower the
system temperature.
GND
+12V
Sense
1
GND
+12V
Sence
1
GND
+12V
Sence
1
4) NB_FAN (Chip Fan Connector)
If you installed wrong direction, the Chip Fan
will not work. Sometimes will damage the Chip
Fan. (Usually black cable is GND)
GND
VCC
1
