BIOS Setup
- 36 -
` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.

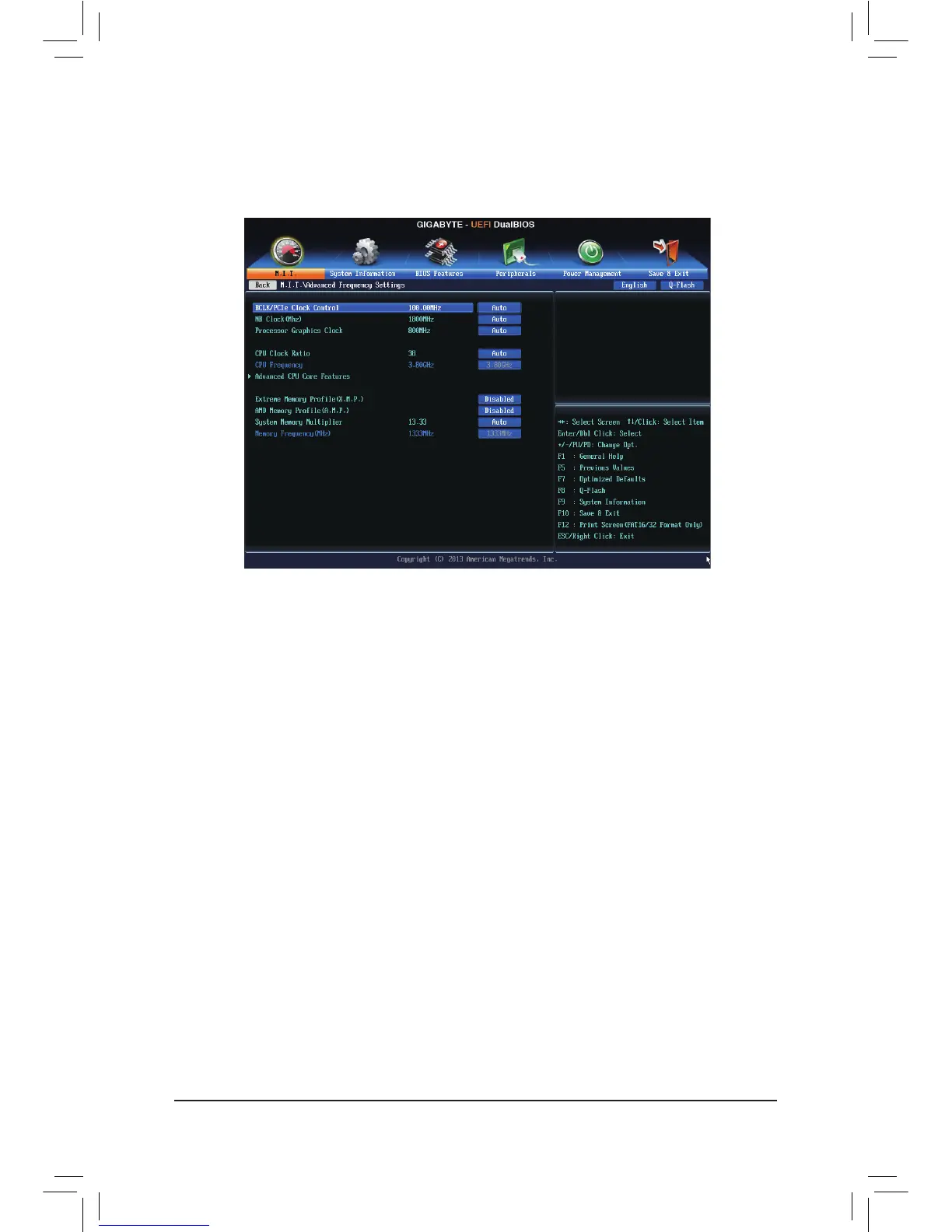

` Advanced Frequency Settings
& BCLK/PCIe Clock Control
 AllowsyoutomanuallysettheCPUbaseclockandPCIebusfrequencyin1MHzincrements.(Default:
Auto)
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& NB Clock(Mhz)
 AllowsyoutomanuallysettheCPUNorthBridgefrequency.Theadjustablerangeisfrom800MHzto6000
MHz.
& Processor Graphics Clock
 Allowsyoutosettheonboardgraphicsclock.Theadjustablerangeisfrom300MHzto2000MHz.
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& CPU Frequency
Displays the current operating CPU frequency.
