Gigabyte GA-X99-UD7 WIFI User Manual

- 29 -
Hardware Installation

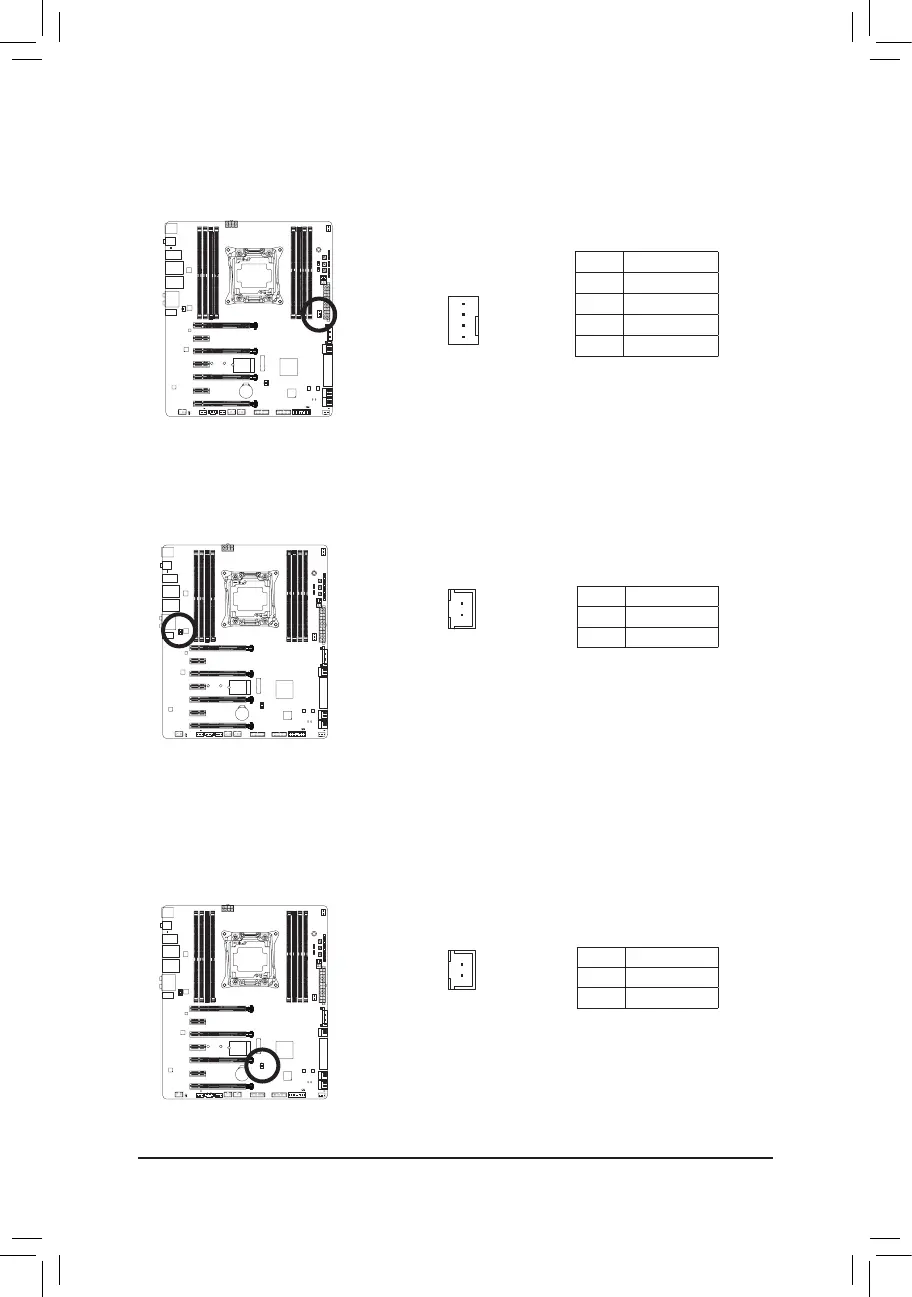

6) CPU_OPT (Water Cooling CPU Fan Header)
The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be sure to
connectitinthecorrectorientation(theblackconnectorwireisthegroundwire).Thespeedcontrolfunction
requires the use of a fan with fan speed control design.
Pin No. Denition
1 GND
2 Speed Control
3 Sense
4 VCC
DEBUG
PORT
G.QBOFM
1
7) LED_CON1 (I/O Shield Audio LED Power Connector)
The power connector provides power to the LEDs on the I/O shield on the motherboard back panel.
Pin No. Denition
1 VCC
2 GND
1
8) LED_CON2 (Heatsink LED Power Connector)
The power connector provides power to the LEDs on the Chipset heatsink.
Pin No. Denition
1 VCC
2 GND
1
