Gigabyte MC13-LE0 User Manual

- 17 -
Hardware Installation
•
Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
•
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.

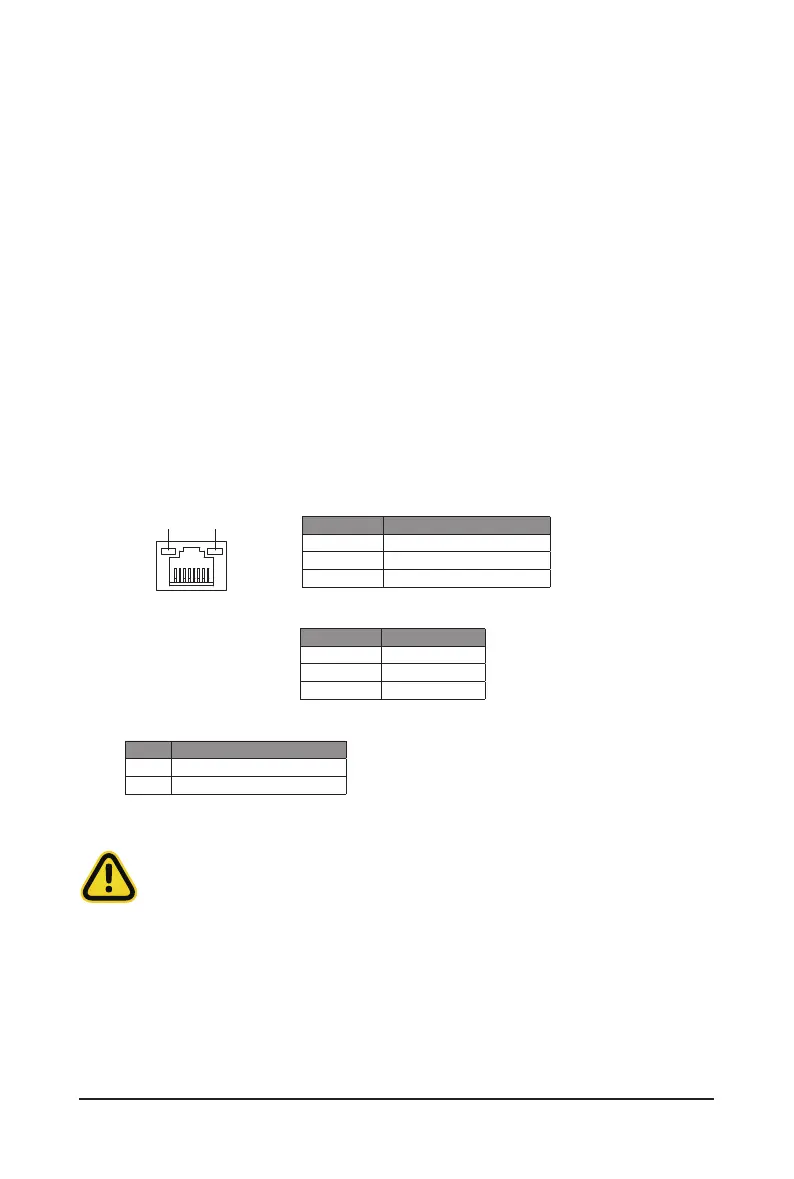

LAN and ID Button LEDs
Link/Activity LED
Speed LED
LAN Port
ID button/LED:
10/100/1000 LAN LED:
State Description
Yellow On 1Gbps data rate
Green On 100Mbps data rate
Off 10Mbps data rate
State Description
Blue On Systemidenticationisactive
Off Systemidenticationisdisabled
w
10GbE LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
x
10GbE LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
y
Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
z
USB 3.2 Gen1 Ports
TheUSBportsupportstheUSB3.2Gen1specication.UsethisportforUSBdevicessuchasaUSB
keyboard/mouse,USBprinter,USBashdriveetc.
{
ID button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
10GbE LAN LED:
State Description
Yellow On 5Gbps, 2.5Gbps, 1Gps data rate
Green On 10Gbps data rate
Off 100Mbps data rate
