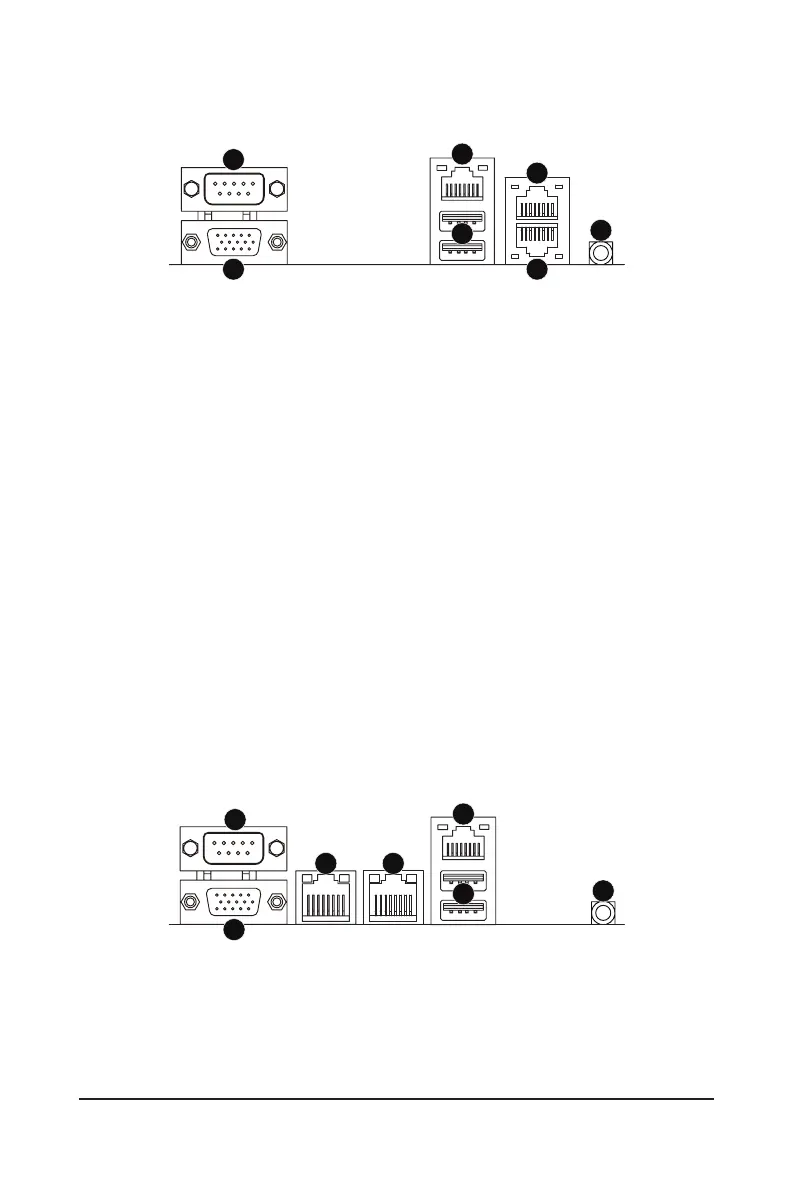

1-6 Back Panel Connectors
u
Serial Port
Connects to serial-based mouse or data processing devices.
v
VGA Port
Connects to a monitor device.
w
Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
x
USB 3.2 Gen1 Ports
TheUSBportsupportstheUSB3.2Gen1specication.UsethisportforUSBdevicessuchasaUSB
keyboard/mouse,USBprinter,USBashdriveetc.
y
1GbE LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
z
1GbE LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
{
ID button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
MC13-LE0
1
2
3
5
6
7
4
MC13-LE1
u
Serial Port
Connects to serial-based mouse or data processing devices.
v
VGA Port
Connects to a monitor device.
