Gigabyte MD72-HB0 User Manual

- 17 - Hardware Installation

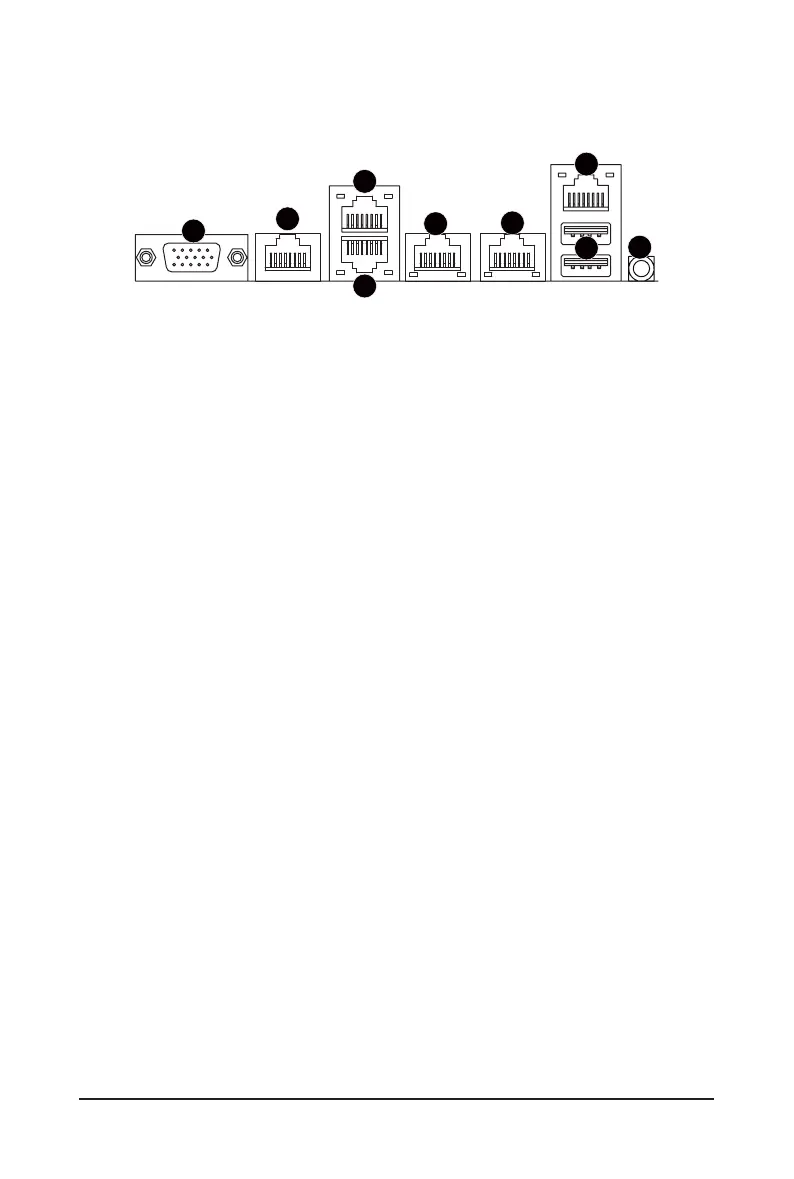

1-6 Back Panel Connectors
u
VGA Port
Connects to a monitor device.
v
Serial Port (RJ45 Type)
Connects to data processing devices.
w
GbE LAN Port #1
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
x
GbE LAN Port #2
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section
below for a description of the states of the LAN port LEDs.
y
10GbE LAN Port #2
(Note)
The 10 Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the
section below for a description of the states of the LAN port LEDs.
z
10GbE LAN Port #1
(Note)
The 10 Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the
section below for a description of the states of the LAN port LEDs.
{
Server Management LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the dedicated LAN port for Server Management.
|
USB 3.1 Ports
The USB port supports the USB 3.1 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveetc.
}
ID Button with LED
Whenthesystemidenticationisactive,theIDLEDonthefront/backpanelglowsblue.
1
2
3
4
5
6
7
8
9
(Note) MD72-HB0 Only.
