Gigabyte MD72-HB0 User Manual

- 19 - Hardware Installation

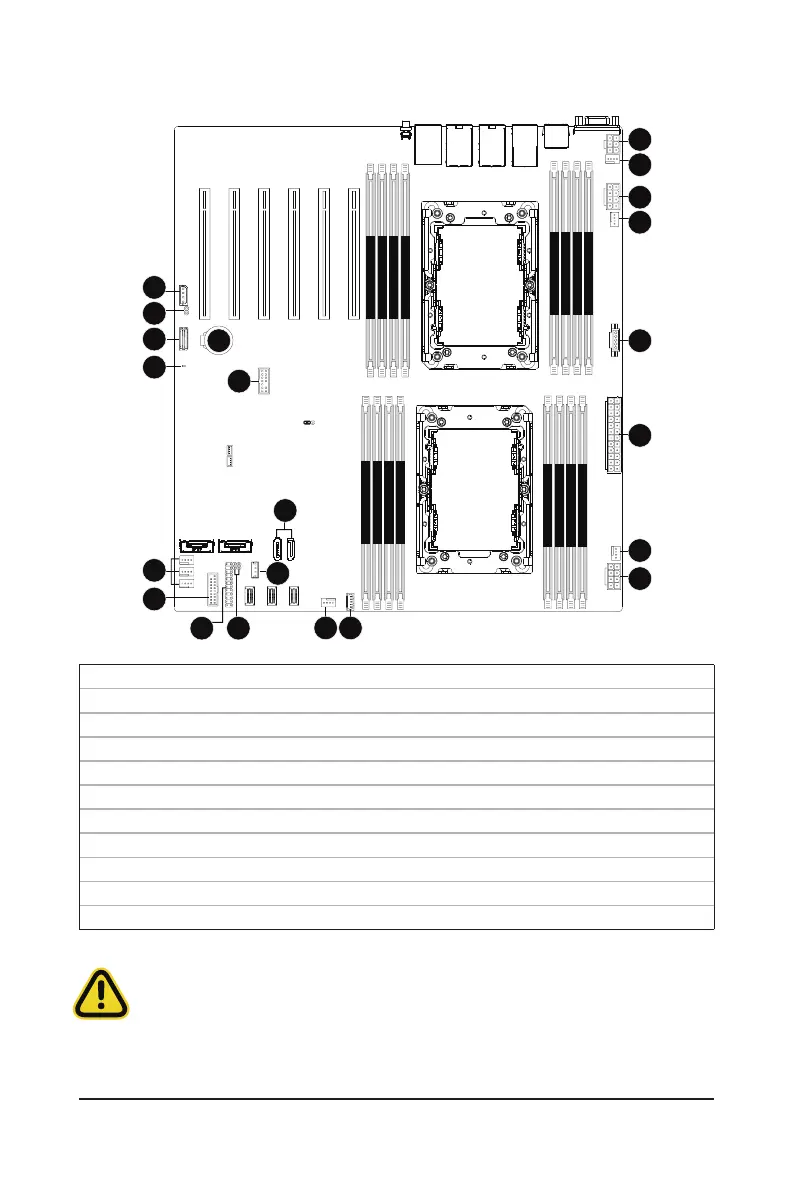

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX3 12) PMBUS1
2) P12V_AUX1 (for CPU0) 13) F_USB1
3) P12V_AUX2 (for CPU1) 14) FP_1
4) P12V_AUX3 (for PCIe) 15) BP_1
5) SSATA5/SSATA4 16) SPI_TPM
6) SSATA_SGP 17) IPMB
7) SW_RAID 18) 10GACT2/10GACT1 (MD72-HB0 Supported)
8) CPU0_FAN1/CPU1_FAN 19) LED_BMC
9) SYS_FAN1 20) BAT
10) SYS_FAN2/3/4 21) CASE_OPEN
11) SYS_FAN5
CPU1
CPU0
DIMM_P1_J0 DIMM_P1_I0 DIMM_P1_L0 DIMM_P1_K0
DIMM_P1_O0 DIMM_P1_P0 DIMM_P1_M0 DIMM_P1_N0
DIMM_P0_F0 DIMM_P0_E0 DIMM_P0_H0 DIMM_P0_G0
DIMM_P0_C0 DIMM_P0_D0 DIMM_P0_A0 DIMM_P0_B0
8
12
20
21
2
4
3
1
5
6
7
8
9
11
10
13
14
15
16
17
18
19
