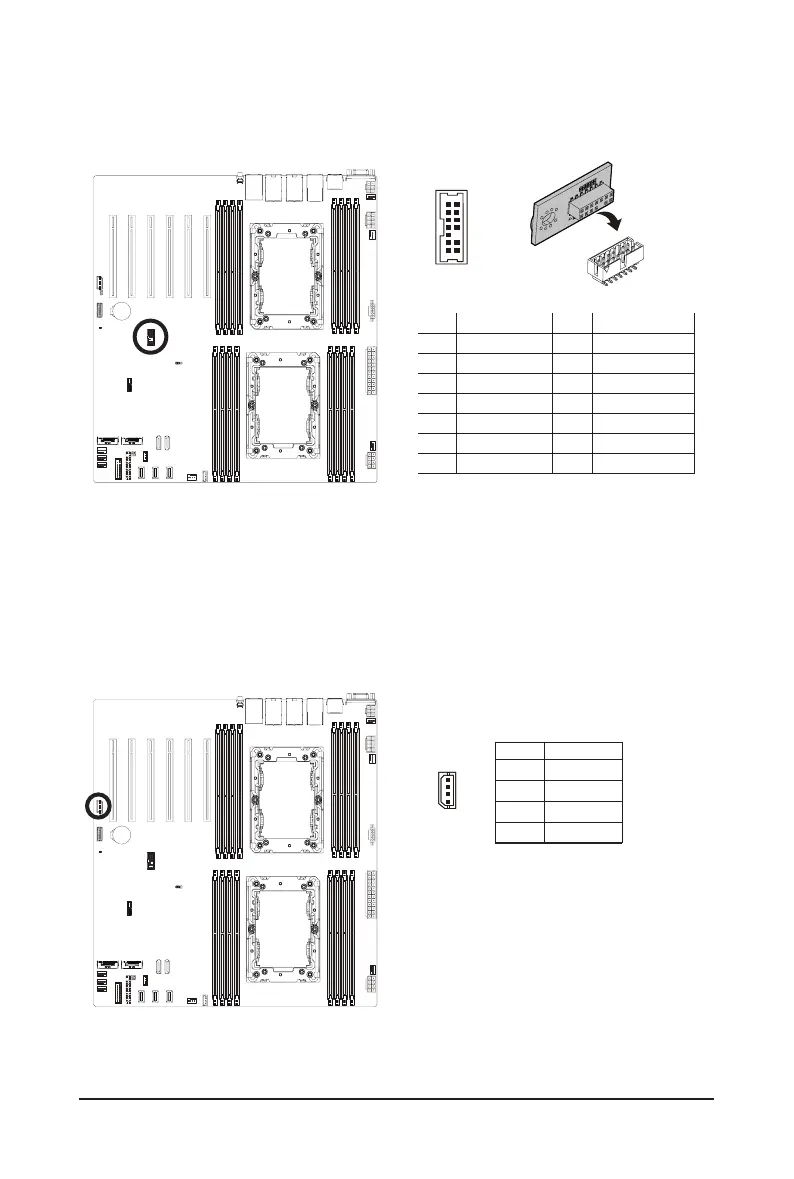

- 25 - Hardware Installation
PinNo. Denition
1 Clock
2 GND
3 Data
4 VCC
17) IPMB (Intelligent Platform Management Bus) Connector
The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for
transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C
devices.
4
1
16) SPI_TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
12
13 14
Pin No. Denition Pin No. Denition
1 Clock 8 NC
2 P_3V3_AUX 9 NC
3 LPC_RST 10 No Pin
4 NC 11 NC
5 SPI_MISO 12 GND
6 IRQ_SPI 13 SPI_CS_N
7 SPI_MOSI 14 GND
